Scientifica PatchStar Micromanipulator

The most versatile motorised manipulator for electrophysiological studies. Designed with leading physiologists.

Benefits

Ultra-stable

Less than 1 µm drift over 2 hours for long-term experiments

Super-smooth movement

20 nm resolution for absolute positioning

Versatile

Easily switchable between left and right-handed configurations

Silent

Electrically quiet for recording of extremely small signals without having to switch off the motors

Fast & simple

Quickly move your pipette with adjustable speed settings and easily change pipettes thanks to the sliding bracket and rotational stages

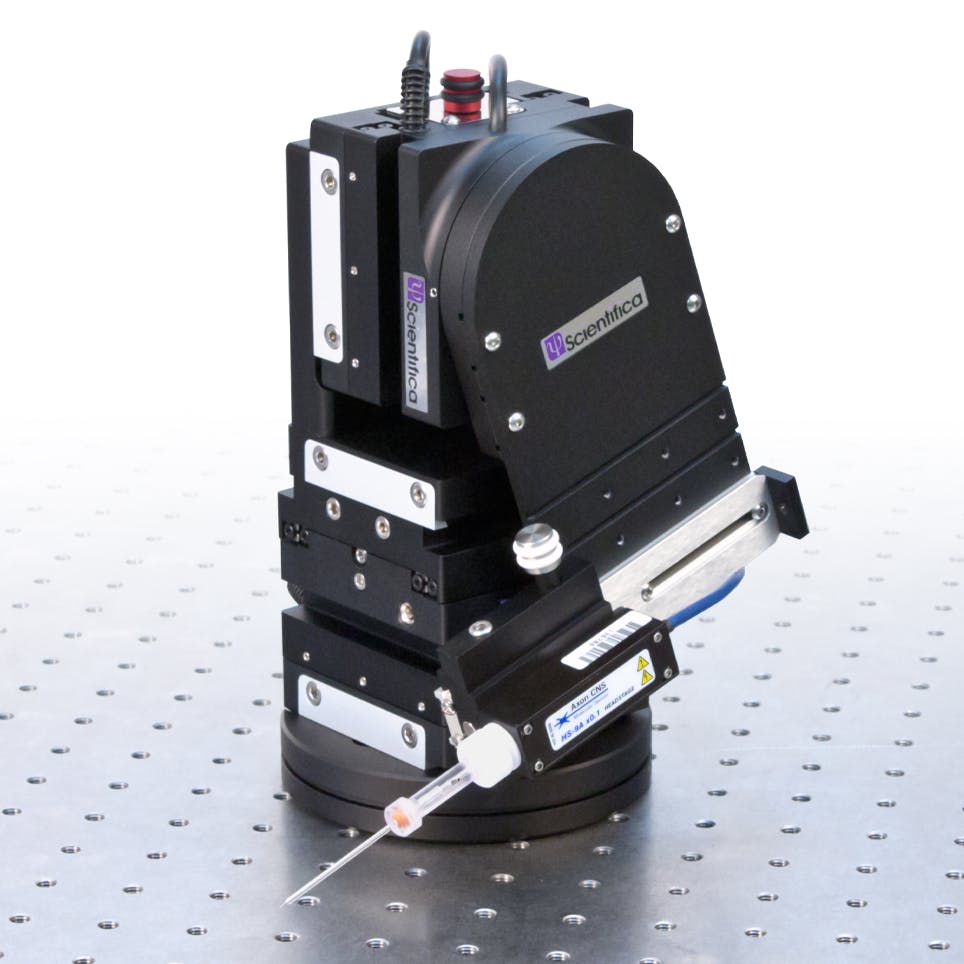

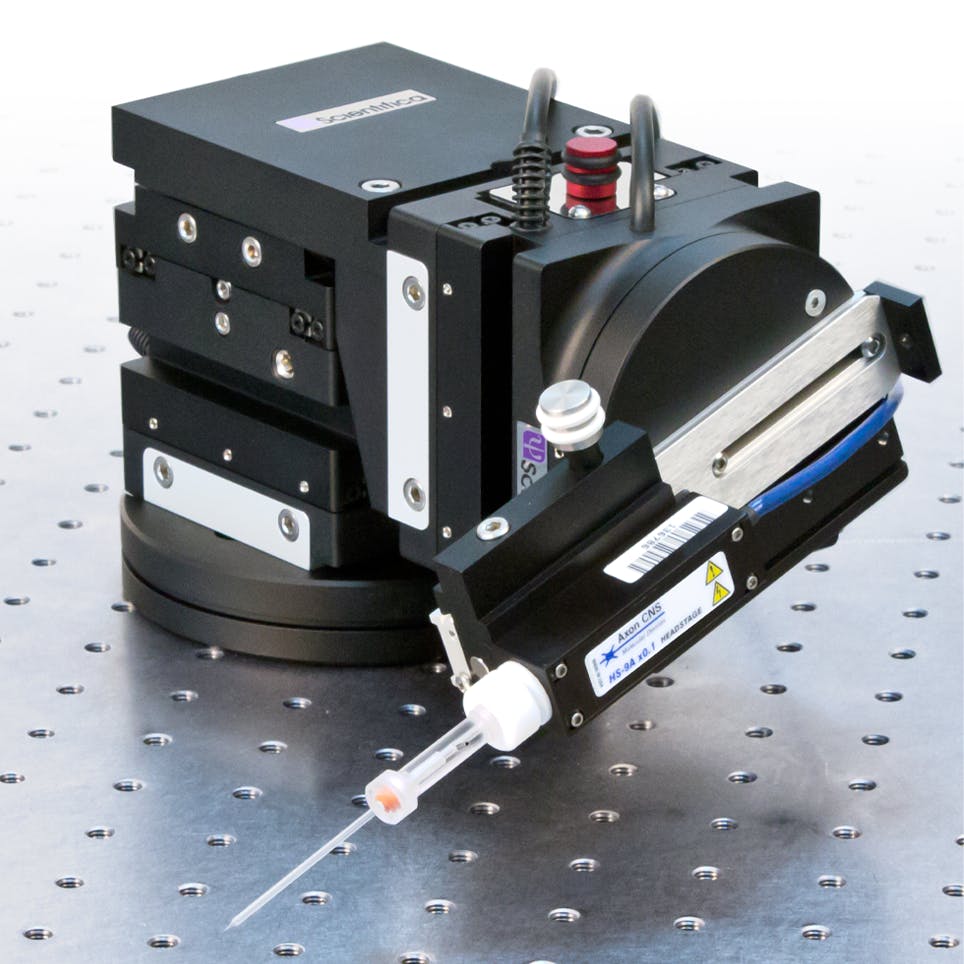

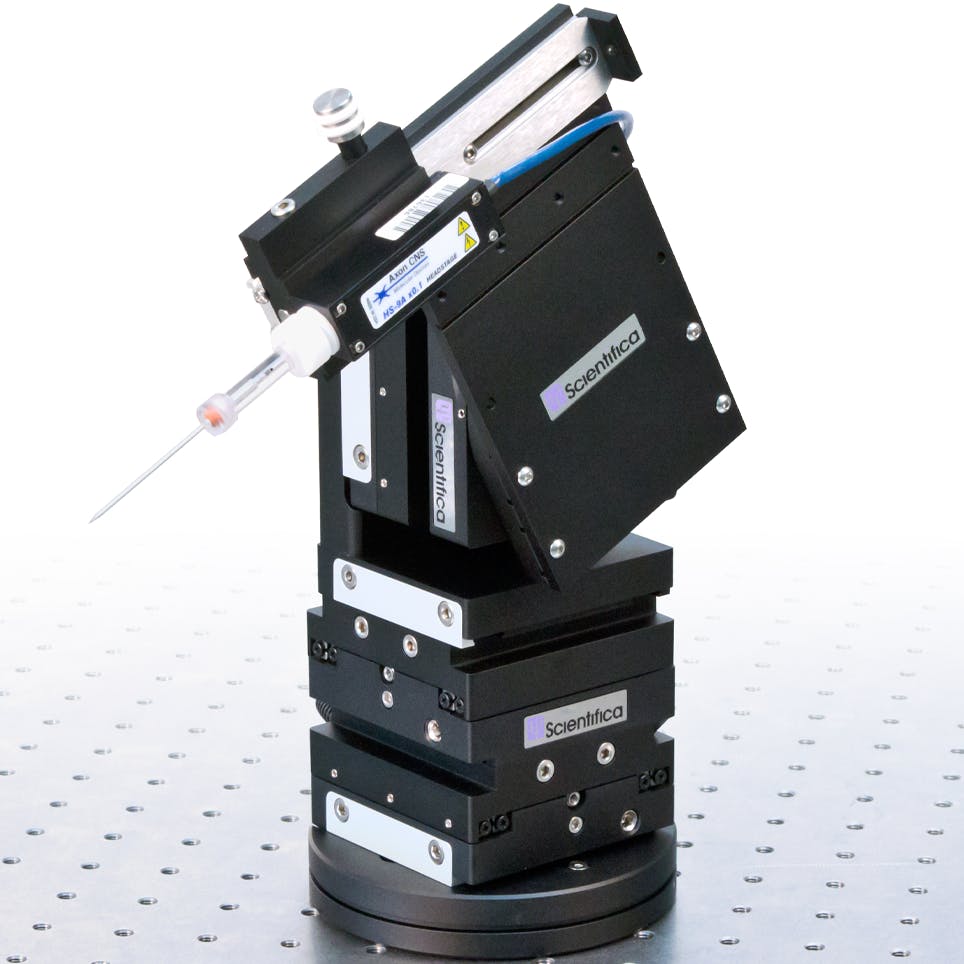

PatchStar 360° view

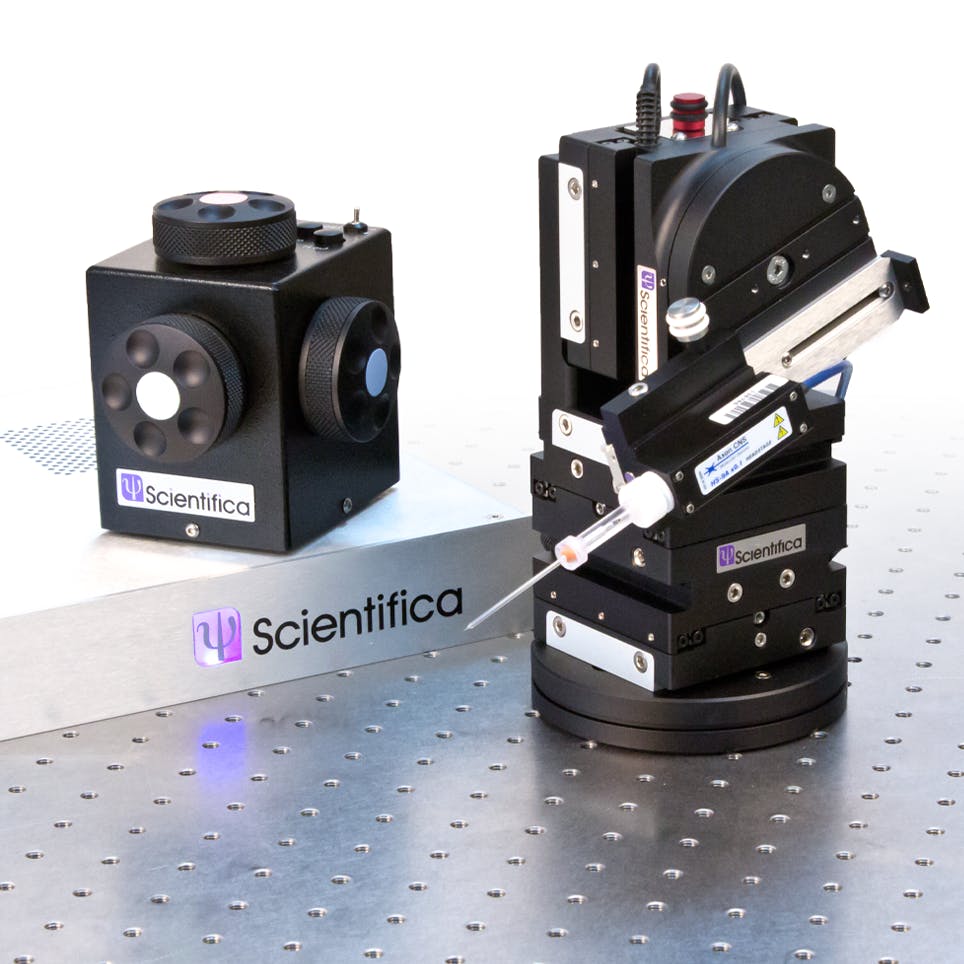

Control options

Operate via our ergonomically designed remote control options or through our specially designed LinLab software.

Design & Specifications

Axes
Axes
3 orthogonal and 4th virtual
Travel
Travel
20 mm (in X, Y and Z axes)
Bearings
Bearings
Crossed roller
Minimum speed
Minimum speed
1 µm per second
Maximum speed
Maximum speed
4 mm per second
Electronic resolution
Electronic resolution
20 nm
Memory positions
Memory positions
50 on control device (unlimited via LinLab)
Software
Software
LinLab for Windows

Testimonials

“We selected PatchStar micromanipulators for the combination of high precision, stability and competitive price.”
Dr Roman Gorbachev, The University of Manchester
"The success rate of my outside-out patch clamp recordings significantly increased to over 90% or even 100%.”
Dr Can Peng, University of Florida
“The PatchStar is the new standard. After 6-months of use, we are still truly impressed by the stability.”
Dr Christophe Bernard, Aix Marseille Université

Downloads

Download the PatchStar Micromanipulator brochure for more information.
