    Scientifica LBM-7 Manual Manipulator

    A precise manual micromanipulator with seven axes of movement. Incredible stability and the high resolution of 1 µm ensures that the Scientifica LBM-7 Manual Manipulator is the very finest positioning tool.

    Benefits

    Stable design

    Reliable positioning of your electrode for long experiments due to mechanical locks

    Easy to use

    Four linear and three rotational axes make it easy to position your probe whilst the manipulator can easily be switched between left and right-handed configurations

    Versatile

    Suitable for a wide range of applications including positioning stimulating electrodes, aligning fibre optics and impaling oocytes

    Fast pipette exchange

    Using the sliding bracket and rotational stages as well as mechanical memory positions speeds up pipette changes

    Simple to mount

    Standard mounting holes allow the LBM-7 to be easily attached to many mounting platforms including the Scientifica Post & Platform

    Downloads

    Download the LBM-7 brochure for more information.

    Design & Specifications

    Number of Axes
    Number of Axes
    4 linear, 3 rotational
    Travel Distance
    Travel Distance
    25 mm in X and Z axes, 12.7 mm in Y axis
    Thread pitch on adjusters
    Thread pitch on adjusters
    0.8 mm in X and Z axes, 0.5 mm in Y axis (per revolution)
    Stages
    Stages
    Aluminium with preloaded linear ball bearing races
    Weight
    Weight
    1 kg

    Testimonials

    “We have found that LBM-7s are small and sturdy micromanipulators with great accuracy and ergonomic handling for fast pipette replacement.”
    Dr Anders Skov Kristensen, University of Copenhagen

    LBM-7 SchematicLBM-7 SchematicLBM-7 Schematic

    Chatterjee, M., Perez de los Cobos Pallares, F., Loebel, A., Lukas, M., & Egger, V. (2016). Sniff-Like Patterned Input Results in Long-Term Plasticity at the Rat Olfactory Bulb Mitral and Tufted Cell to Granule Cell Synapse. Neural Plasticity, 2016, 1-16. http://dx.doi.org/10.1155/2016...

    Flynn, J., Brichta, A., Galea, M., Callister, R., & Graham, B. (2011). A horizontal slice preparation for examining the functional connectivity of dorsal column fibres in mouse spinal cord. Journal Of Neuroscience Methods, 200(2), 113-120. http://dx.doi.org/10.1016/j.jn...

    Hutter, T., Elliott, S., Mahajan, S. (2018). Optical fibre-tip probes for SERS: numerical study for design considerations. Optics Express, 26(12), 15539-15550. https://doi.org/10.1364/OE.26....

    Lukas, M., Holthoff, K., Egger, V. (2018). Long-Term Plasticity at the Mitral and Tufted Cell to Granule Cell Synapse of the Olfactory Bulb Investigated with a Custom Multielectrode in Acute Brain Slice Preparations. Olfactory Receptors, 157-167. https://link.springer.com/prot...

    Poulsen, M., Lucas, S., Bach, T., Barslund, A., Wenzler, C., & Jensen, C. et al. (2013). Structure–Activity Relationship Studies of Argiotoxins: Selective and Potent Inhibitors of Ionotropic Glutamate Receptors. Journal Of Medicinal Chemistry, 56(3), 1171-1181. http://dx.doi.org/10.1021/jm30...

    Poulsen, M., Lucas, S., Stromgaard, K., & Kristensen, A. (2013). Evaluation of PhTX-74 as Subtype-Selective Inhibitor of GluA2-Containing AMPA Receptors. Molecular Pharmacology, 85(2), 261-268. http://dx.doi.org/10.1124/mol....

    Accessories

    Extension Bracket (LBM-2005-00)

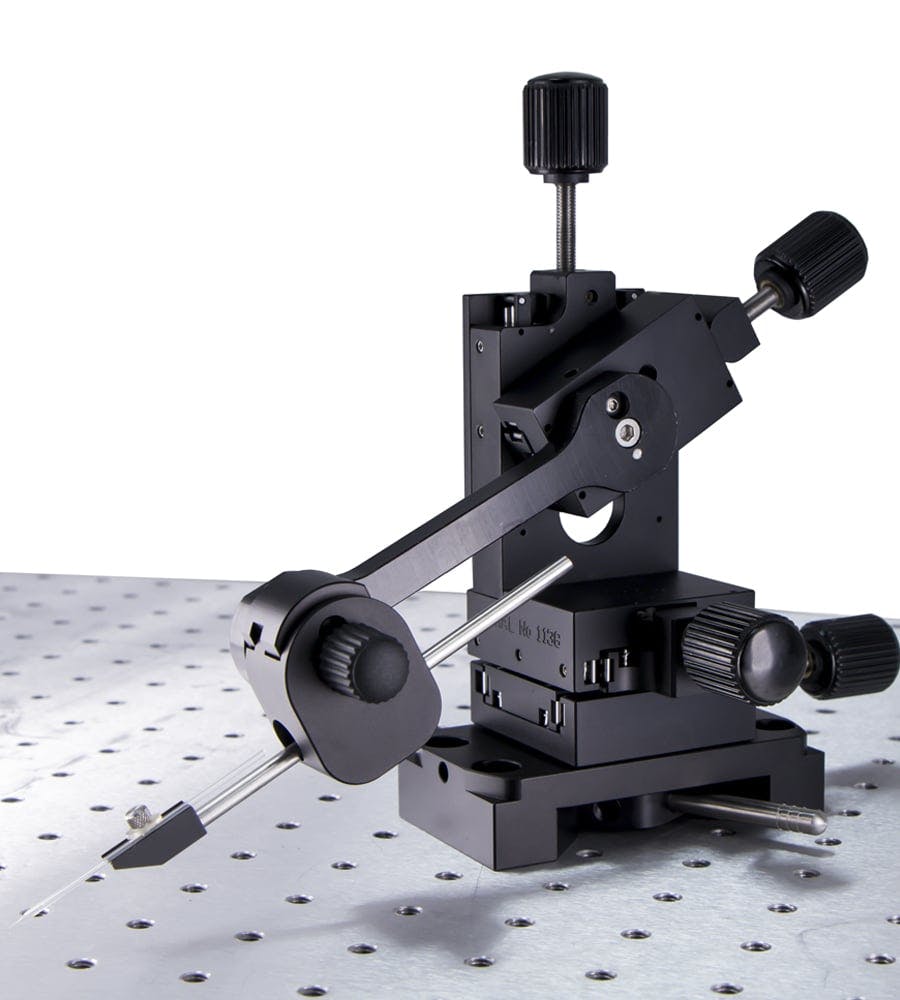

    This bracket provides the freedom to position the probe in difficult places whilst maintaining absolute stability.

    LBM-7 Extension bracket

    Sliding Bracket (LBM-2010-00)

    Safely slide your pipette or electrode in and out of the experimental area with 75 mm of travel to make pipette exchange even easier.

    LBM-7 Sliding Bracket

    Extra Smooth Adjusters (LBM-2025-00)

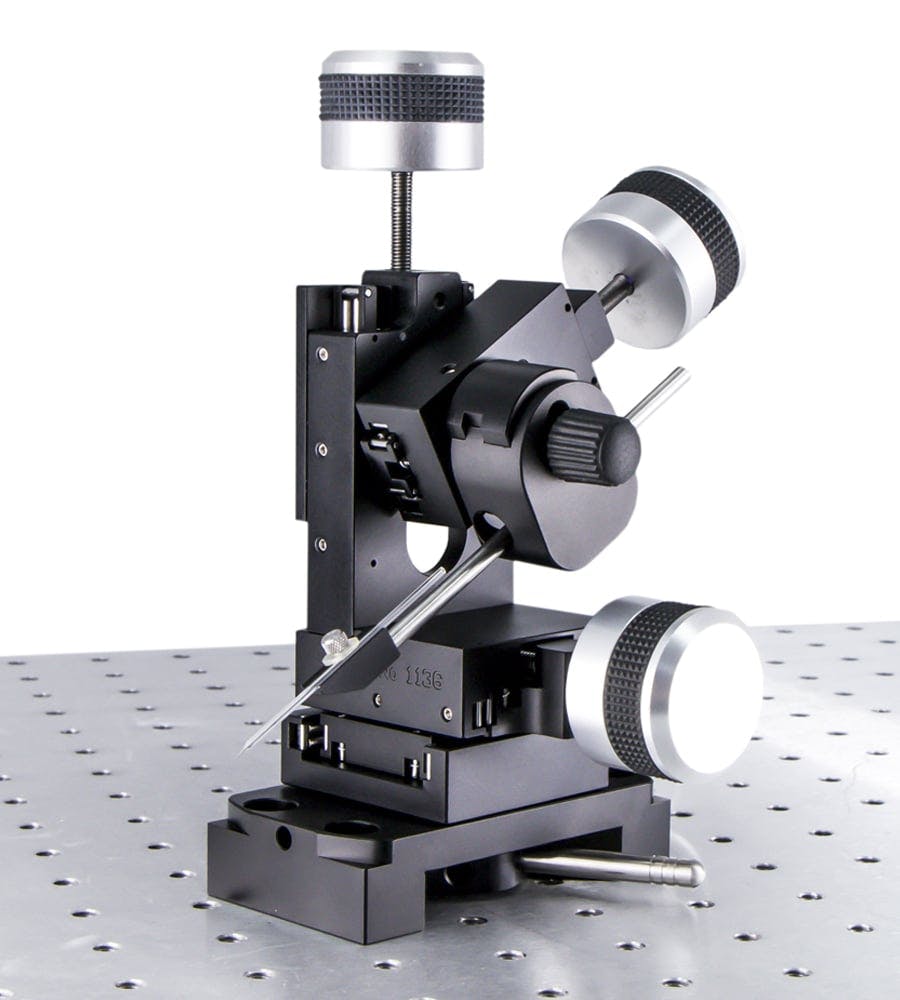

    This manipulator is supremely adjustable in all seven axes, but for scientists who want even more sensitivity, larger diameter adjuster knobs perfectly complement the standard device.

    LBM-7 extra smooth adjusters

    LBM-7 Fixed Mounting Bracket (IVM-505-00)

    Allows the user to mount the IVM on the LBM-7 either to the approach axis stage or to a sliding carriage attached to the approach axis stage. If mounted on the approach axis stage it can only mount in the same axis as the stage. If mounted on the sliding bracket it can be mounted at 90º or in the same axis as the approach axis.

    LBM-7 mounting bracket

    LBM-7 Adjustable Mounting Bracket (IVM-510-00)

    This allows the approach axis of the LBM-7 to be removed and the IVM be mounted in its place. It can then be rotated and locked in position at the correct angle.

    LBM-7 Adjustable mounting bracket

    Riser Block for the LBM 7

    A 70 mm block to raise the height of the manipulator.

    LBM-7 Riser block

    Post and Platform for MMBP (PP-3400-00)

    Used to mount the MicroStar onto the Scientifica MMBP

    Electrode Holding Bar (EHB-500)

    Electrode/probe holding bar with v groove.
