Scientifica IVM Single

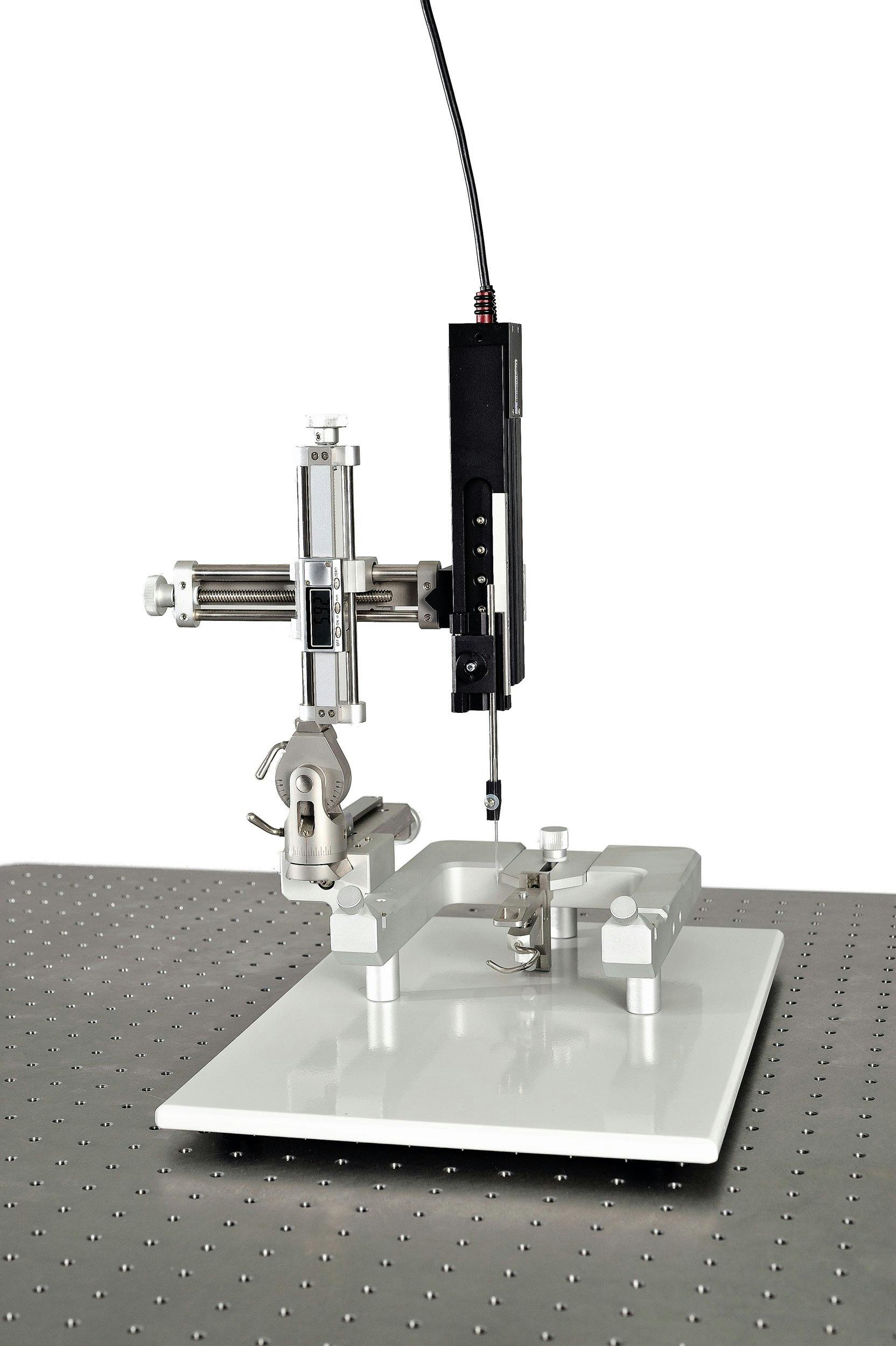

A versatile single axis motorised manipulator that enables precise, controlled positioning of pipettes and probes, including neuropixels probes and microelectrode arrays (MEAs). Ideal for a range of electrophysiology experiments, including field recordings and patch clamp, as well as microinjection experiments.

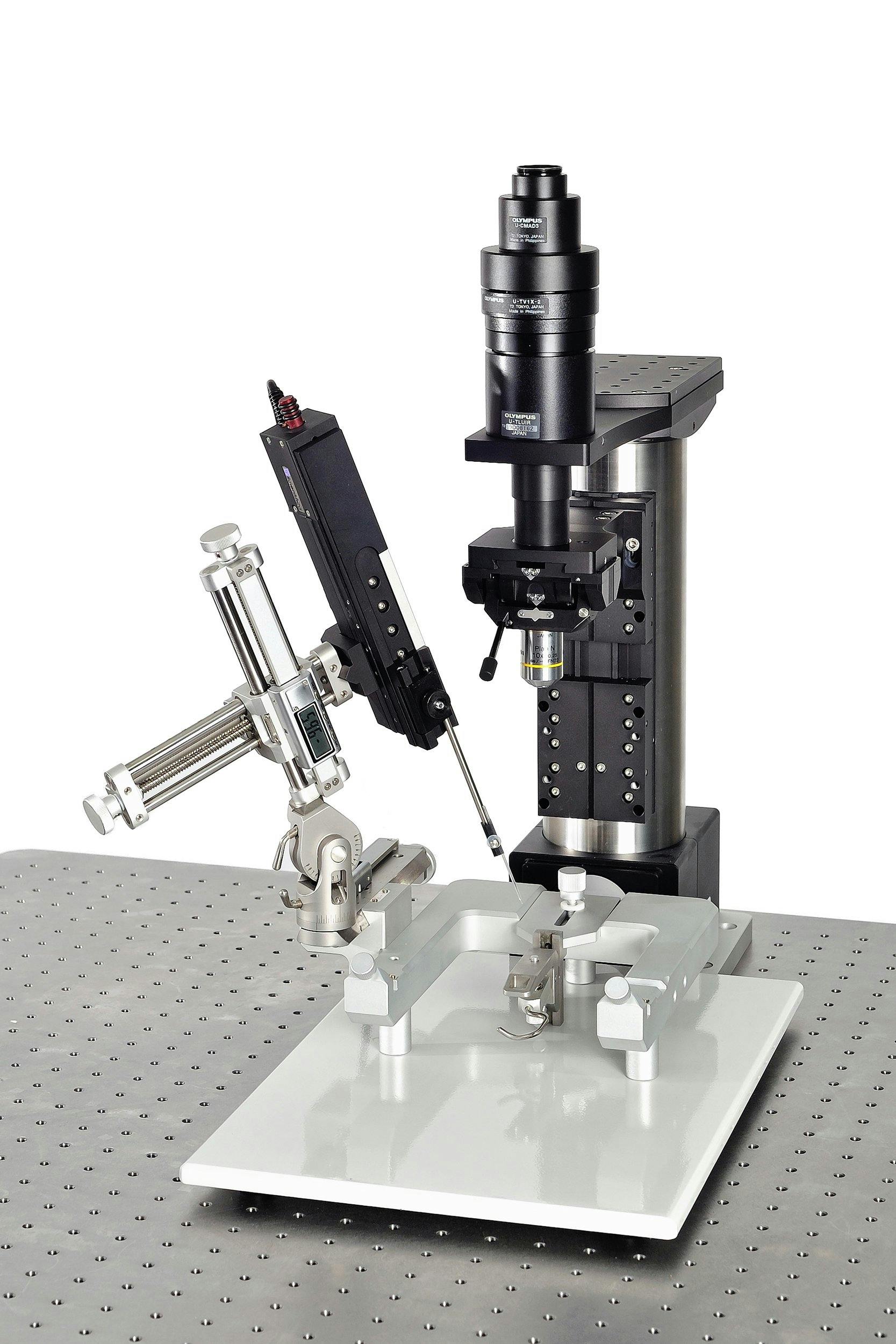

Compatible with stereotaxic frames, the long travel and ultra-smooth motion make this micromanipulator the perfect solution for in vivo experiments.

Benefits

Maximises tissue health

Smooth probe insertion into the brain. Using the unique 'creeper' function to precisely control the movement of the manipulator, your probe can 'creep' to the desired position at a speed of your choice. This minimises tissue damage, reduces gliosis and increases the signal quality and data you receive from neurons.

Accurate positioning

Hit your precise target every time by programming the IVM to move to the exact brain region you are interested in, at a speed of your choice. The IVM has 20 nm resolution for absolute positioning. View the exact position of your probe using dedicated software and/or the Patch Pad display.

Perform long-term experiments

The high stability of the design ensures you can maintain position in the brain for reliable, long-term experiments.

High signal-to-noise ratio

The smooth approach, minimises tissue damage, maximises the signal-to-noise ratio and improves histology outcomes.

Audibly quiet

The low-noise electronics minimise disturbance to the sample and allows smaller signals to be detected.

Focus on your sample

The hands-free movement allows you to concentrate on the welfare of your sample during probe positioning. The risk of human error is reduced, which reduces wasted animals and time, increasing your experimental efficiency.

High stability

The continuous, smooth motion of the manipulator causes minimal vibrations compared to the stop-start motion of a manual manipulator. This improves accuracy and reduces damage, so you can draw reliable conclusions from your results.

Reach deep within your sample

The long 70mm range of travel means you can probe deep into your sample.

Compact

The IVM-1000 takes up less room, ideal if you are limited on space.

Control options

Operate via our ergonomically designed remote control options or through our specially designed LinLab software.

What is the unique 'creeper' function?

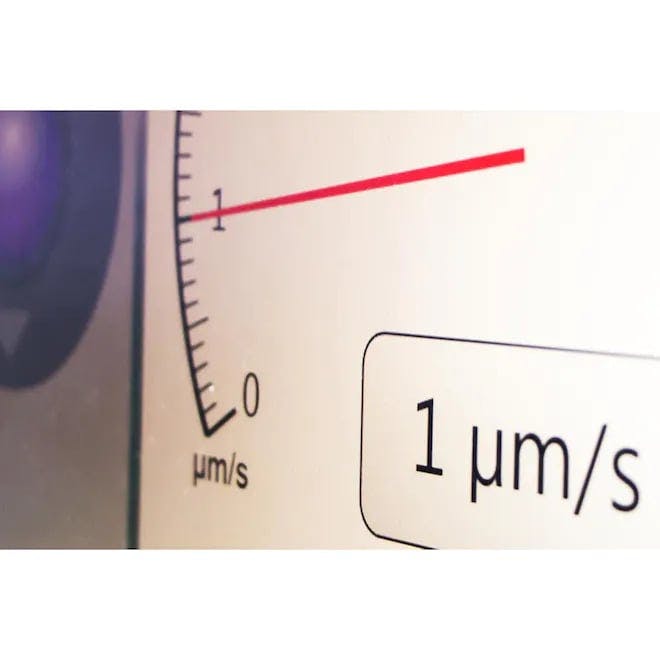

The creeper function in LinLab allows the movement of the manipulator to be programmed over a set distance at a pre-defined speed. This allows for smooth motion to the correct area of interest.

Alternatively, the step function can be used for faster, yet measured step movement to insert the electrode into the cell.

Downloads

Download the IVM Single brochure for more information.

Design & Specifications

Number of axes
Number of axes
1
Travel distance
Travel distance
70 mm
Electronic resolution
Electronic resolution
20 nm
Minimum step size
Minimum step size
0.1 µm
Minimum speed
Minimum speed
1 µm per second
Maximum speed
Maximum speed
4 mm per second
Memory positions
Memory positions
50 on control device (unlimited via LinLab)
Software
Software
LinLab for Windows

Testimonials

"Compared to other micromanipulators I have used, the Scientifica IVM allows us to isolate more cells and to record from each cell for a longer time."
Dr Nicholas Lesica, Ear Institute, University College London

in vivo manipulatorin vivo manipulatorin vivo manipulator

Bocian, R., Kazmierska, P., Kłos-Wojtczak, P., Kowalczyk, T., & Konopacki, J. (2015). Orexinergic theta rhythm in the rat hippocampal formation: In vitro and in vivo findings. Hippocampus, 25(11), 1393-1406. http://dx.doi.org/10.1002/hipo...

Boutin, R., Alsahafi, Z., & Pagliardini, S. (2016). Cholinergic modulation of the parafacial respiratory group. The Journal Of Physiology, 595(4), 1377-1392. http://dx.doi.org/10.1113/jp27...

Caban, B., Staszelis, A., Kazmierska, P., Kowalczyk, T., Konopacki, J. (2018). Postnatal Development of the Posterior Hypothalamic Theta Rhythm and Local Cell Discharges in Rat Brain Slices. Developmental Neurobiology, 78(11), 1049-1063. https://doi.org/10.1002/dneu.22628

Dai, J., Ozden, I., Brooks, D., Wagner, F., May, T., Agha, N., Brush, B., Borton, D., Nurmikko, A., Sheinberg, D. (2015). Modified toolbox for optogenetics in the nonhuman primate. Neurophotonics, 2(3), 031202. https://doi.org/10.1117/1.NPh.2.3.031202

Devonshire, I., Greenspon, C., & Hathway, G. (2015). Developmental alterations in noxious-evoked EEG activity recorded from rat primary somatosensory cortex. Neuroscience, 305, 343-350. http://dx.doi.org/10.1016/j.ne...

Devonshire, I., Kwok, C., Suvik, A., Haywood, A., Cooper, A., & Hathway, G. (2015). A quantification of the relationship between neuronal responses in the rat rostral ventromedial medulla and noxious stimulation-evoked withdrawal reflexes. European Journal Of Neuroscience, 42(1), 1726-1737. http://dx.doi.org/10.1111/ejn....

Dodson, P., Dreyer, J., Jennings, K., Syed, E., Wade-Martins, R., & Cragg, S. et al. (2016). Representation of spontaneous movement by neurons is cell-type selective and disrupted in parkinsonism. Proceedings Of The National Academy Of Sciences, 113(15), E2180-E2188. http://dx.doi.org/10.1073/pnas...

Dodson, P., Larvin, J., Duffell, J., Garas, F., Doig, N., & Kessaris, N. et al. (2015). Distinct Developmental Origins Manifest in the Specialized Encoding of Movement by Adult Neurons of the External Globus Pallidus. Neuron, 86(2), 501-513. http://dx.doi.org/10.1016/j.ne...

Doig, N., Magill, P., Apicella, P., Bolam, J., & Sharott, A. (2014). Cortical and Thalamic Excitation Mediate the Multiphasic Responses of Striatal Cholinergic Interneurons to Motivationally Salient Stimuli. Journal Of Neuroscience, 34(8), 3101-3117. http://dx.doi.org/10.1523/jneu...

Ford, M., Alexandrova, O., Cossell, L., Stange-Marten, A., Sinclair, J., & Kopp-Scheinpflug, C. et al. (2015). Tuning of Ranvier node and internode properties in myelinated axons to adjust action potential timing. Nature Communications, 6, 8073. http://dx.doi.org/10.1038/ncom...

Greenspon, C., Battell, E., Devonshire, I., Donaldson, L., Chapman, V., & Hathway, G. (2019). Lamina-specific population encoding of cutaneous signals in the spinal dorsal horn using multi-electrode arrays. The Journal of Physiology, 597(2), 377-397. https://physoc.onlinelibrary.w...

Kazmierska, P., & Konopacki, J. (2015). Development of theta rhythm in hippocampal formation slices perfused with 5-HT1A antagonist, (S)WAY 100135. Brain Research, 1625, 142-150. http://dx.doi.org/10.1016/j.br...

Kwok, C., Learoyd, A., Canet-Pons, J., Trang, T., & Fitzgerald, M. (2020). Spinal interleukin-6 contributes to central sensitisation and persistent pain hypersensitivity in a model of juvenile idiopathic arthritis. Elsevier. https://doi.org/10.1016/j.bbi.2020.08.004

Sharott, A., Doig, N., Mallet, N., & Magill, P. (2012). Relationships between the Firing of Identified Striatal Interneurons and Spontaneous and Driven Cortical Activities In Vivo. Journal Of Neuroscience, 32(38), 13221-13236. http://dx.doi.org/10.1523/jneu...

Sollini, J., Chapuis, G A., Clopath, C., & Chadderton, C. (2018). ON-OFF receptive fields in auditory cortex diverge during development and contribute to directional sweep selectivity. Nature Communications, 2084(9). https://www.nature.com/article...

Stiles, L., Reynolds, J N., Napper, R., Zheng, Y., & Smith, P F. (2018). Single neuron activity and c-Fos expression in the rat striatum following electrical stimulation of the peripheral vestibular system. Physiological Reports, 6(13). https://physoc.onlinelibrary.w...

Viney, T J., Salib, M., Joshi, A., Unal, G., Berry, N., & Somogyi, P. Shared rhythmic subcortical GABAergic input to the entorhinal cortex and presubiculum. (2018). https://elifesciences.org/arti...

Zhang, C., Luo, W., Zhou, P., & Sun, T. (2016). Microinjection of acetylcholine into cerebellar fastigial nucleus induces blood depressor response in anesthetized rats. Neuroscience Letters, 629, 79-84. http://dx.doi.org/10.1016/j.ne...

Zhang, C., Sun, T., Zhou, P., Zhu, Q., & Zhang, L. (2015). Role of Muscarinic Acetylcholine Receptor-2 in the Cerebellar Cortex in Cardiovascular Modulation in Anaesthetized Rats. Neurochemical Research, 41(4), 804-812. http://dx.doi.org/10.1007/s110...

Accessories

Dovetail Probe Holder (PH-1000)

Dovetail probe holder to fit bars/probes

Dovetail probe holder

Extended Right Angled Kopf Mount (IVM-650-00)

Allows the user to mount the IVM in one of four mounting positions on the Kopf or Stoelting manipulator.

LBM-7 Adjustable Mount (IVM-510-00)

This allows the approach axis of the LBM-7 to be removed, enabling the IVM be mounted in its place. It can then be rotated and locked in position at the correct angle.

LBM-7 Fixed Mount (IVM-505-00)

Allows the user to mount the IVM on the LBM-7 either to the approach axis stage or to the sliding carriage attached to the approach axis. If mounted on the approach axis stage it can only do so in the same axis as the stage. If mounted on the sliding bracket it can be mounted at 90º or in the same axis as the approach axis.

Extended Probe Holder

To hold capillary glass of 1-2 mm in diameter.

Right Angled Kopf Mount (IVM-520-00)

Allows the user to mount the IVM in a single mounting position on the Kopf or Stoelting manipulator.
