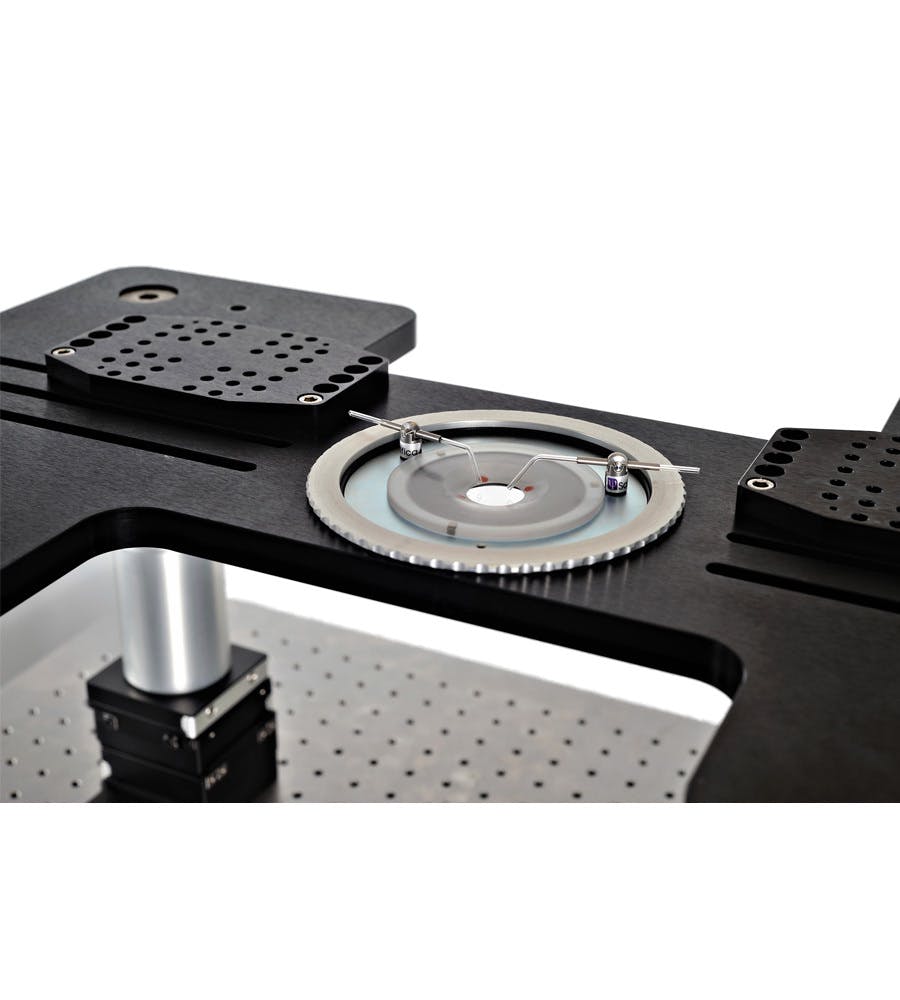

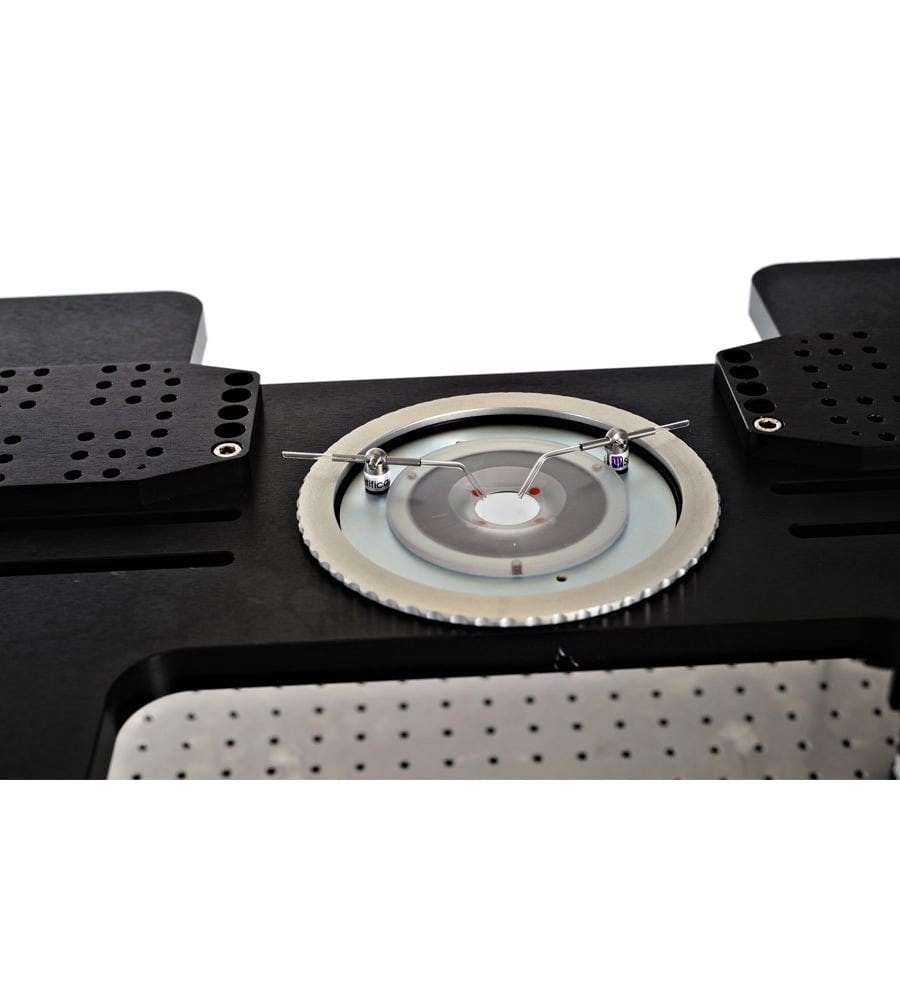

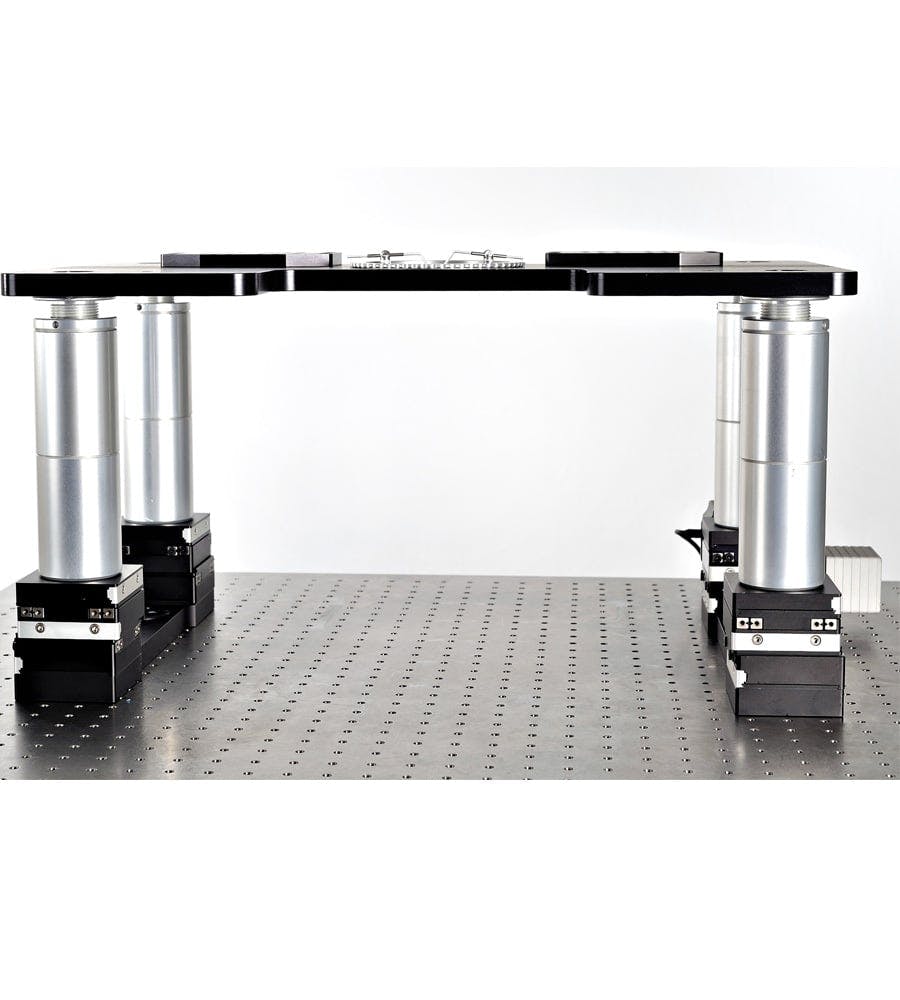

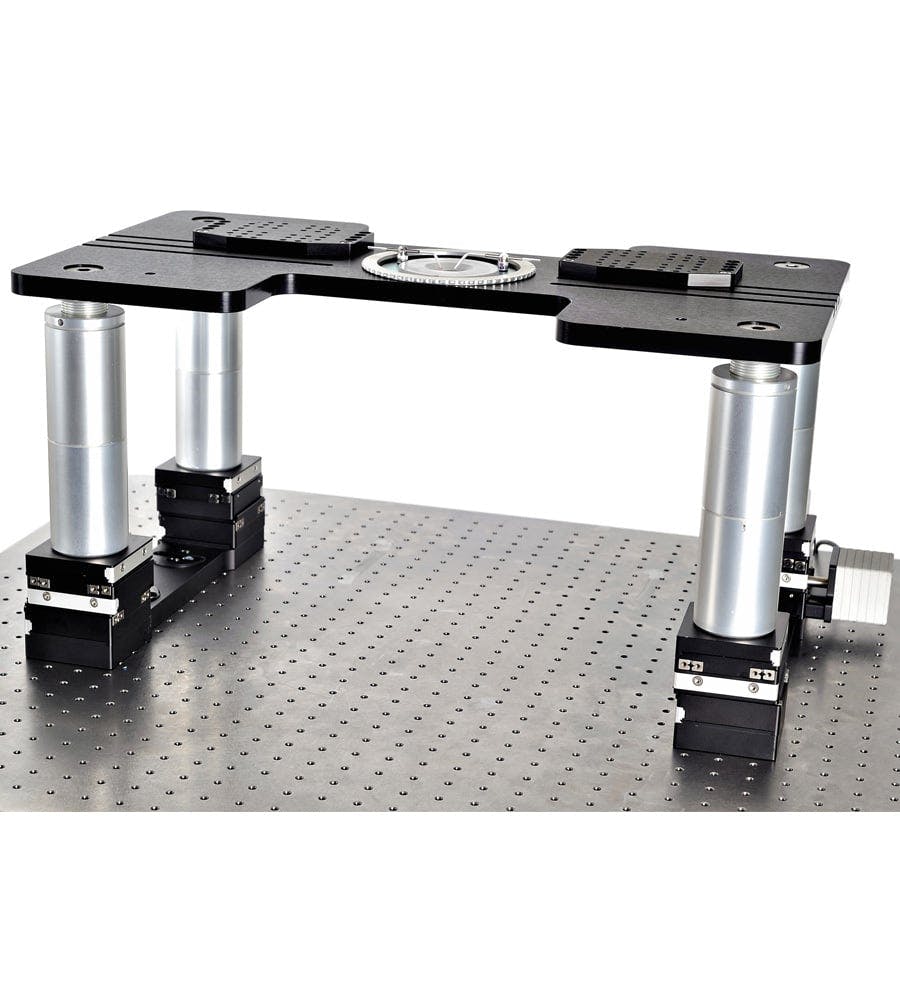

    Scientifica Inverted Motorised Movable Top Plate (IMMTP)

    Designed for combining electrophysiology and imaging experiments with an inverted microscope.

    Move your sample whilst maintaining long-term patch clamp experiments.

    Benefits

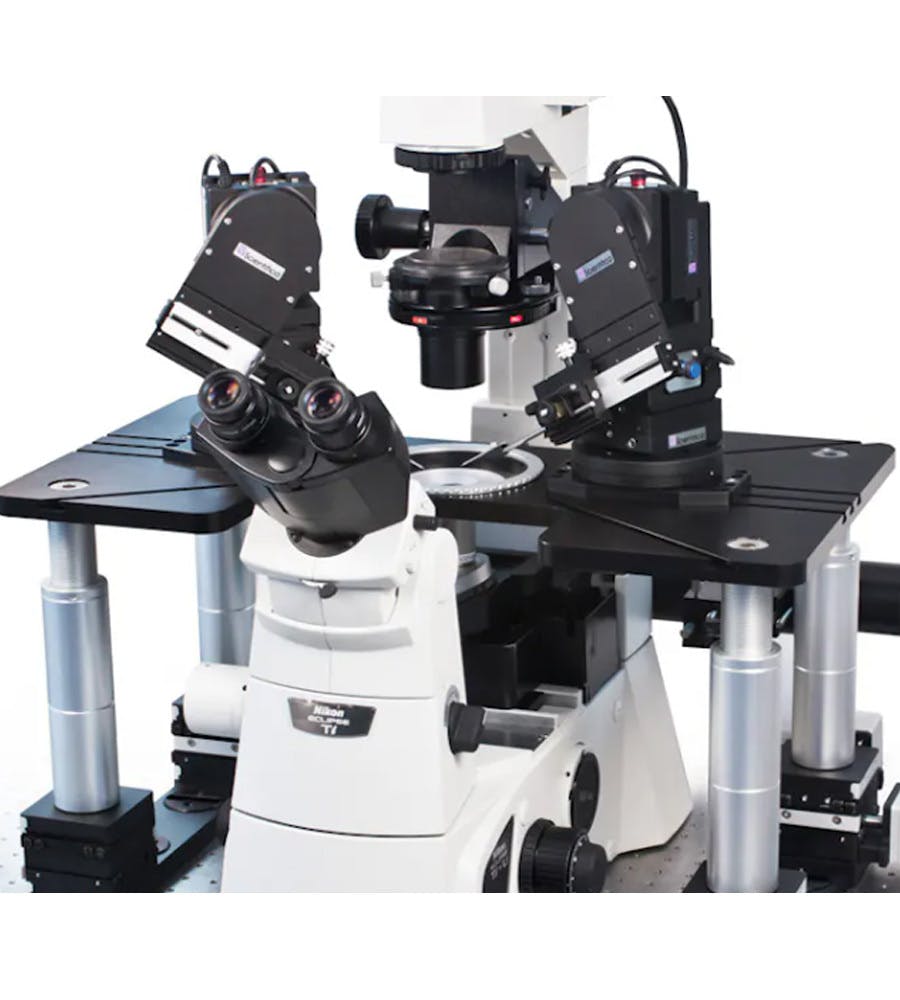

    Compatible with most inverted microscopes

    The IMMTP can be used with a large number of microscopes from the major manufacturers, such as Nikon, Olympus, Leica and Zeiss.

    Super-smooth movement

    20 nm resolution for absolute positioning in X and Y axes.

    Ultra-stable design

    Once in the desired position the stable design allows for long-term electrophysiology and imaging recordings.

    Simple mounting

    Easily mount manipulators like the PatchStar to the top plate with sliding carriages for exact positioning.

    Silent

    Electrically quiet for recording of extremely small signals without having to switch off the motors.

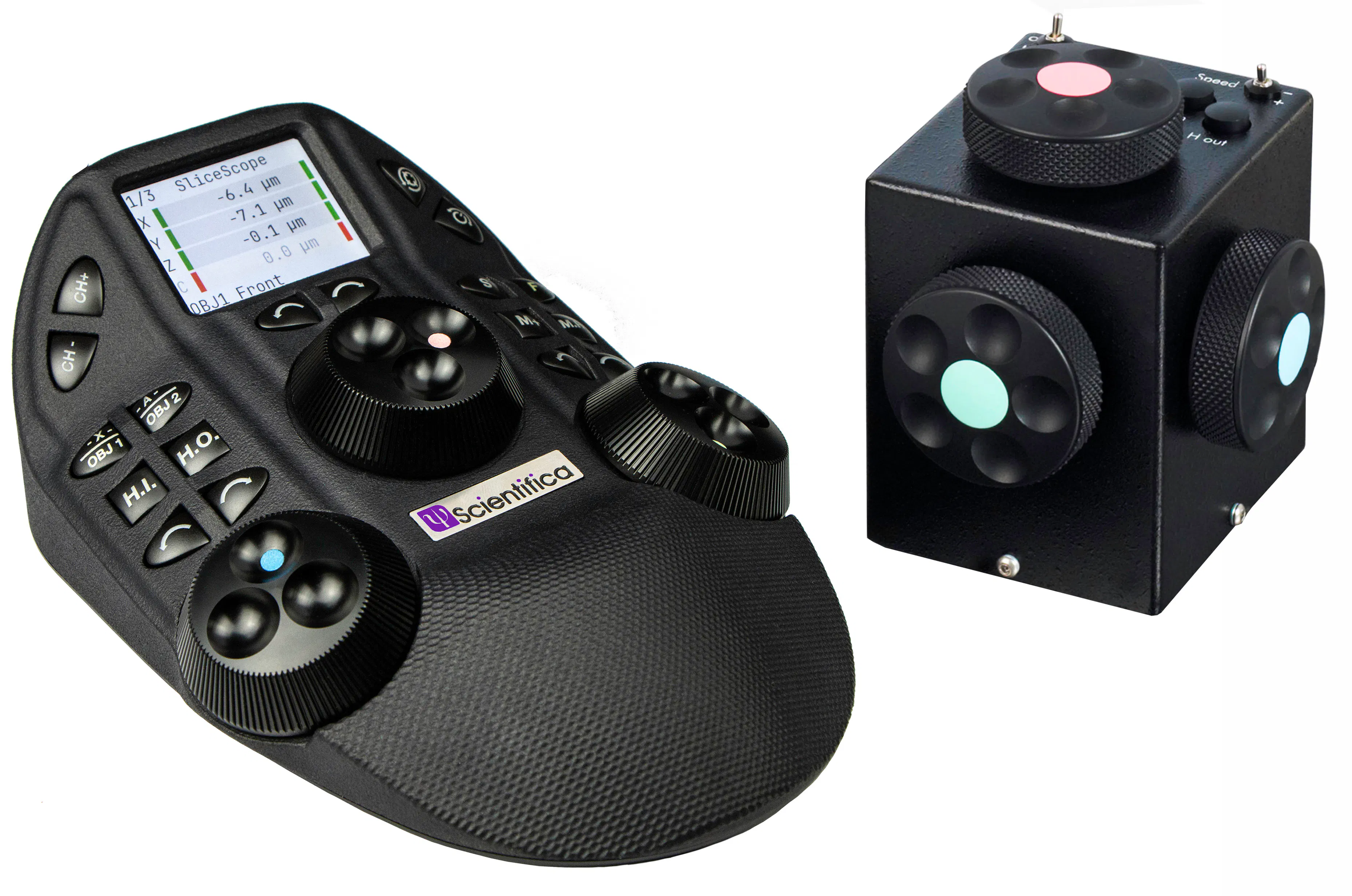

    Control options

    Operate via our ergonomically designed control options or through the specially designed LinLab software.

    Downloads

    Download the Inverted Motorised Movable Top Plate (IMMTP) brochure for more information.

    Design & Specifications

    Number of axes
    Number of axes
    2
    Travel distance
    Travel distance
    25 mm (in X and Y axes)
    Electronic resolution
    Electronic resolution
    20 nm
    Minimum step size
    Minimum step size
    0.1 µm
    Minimum speed
    Minimum speed
    1 µm per second
    Maximum speed
    Maximum speed
    4 mm per second
    Chamber adapters accepted
    Chamber adapters accepted
    108 mm & 110 mm
    Memory positions
    Memory positions
    50 on control device (unlimited via LinLab)
    Software
    Software
    LinLab for Windows
