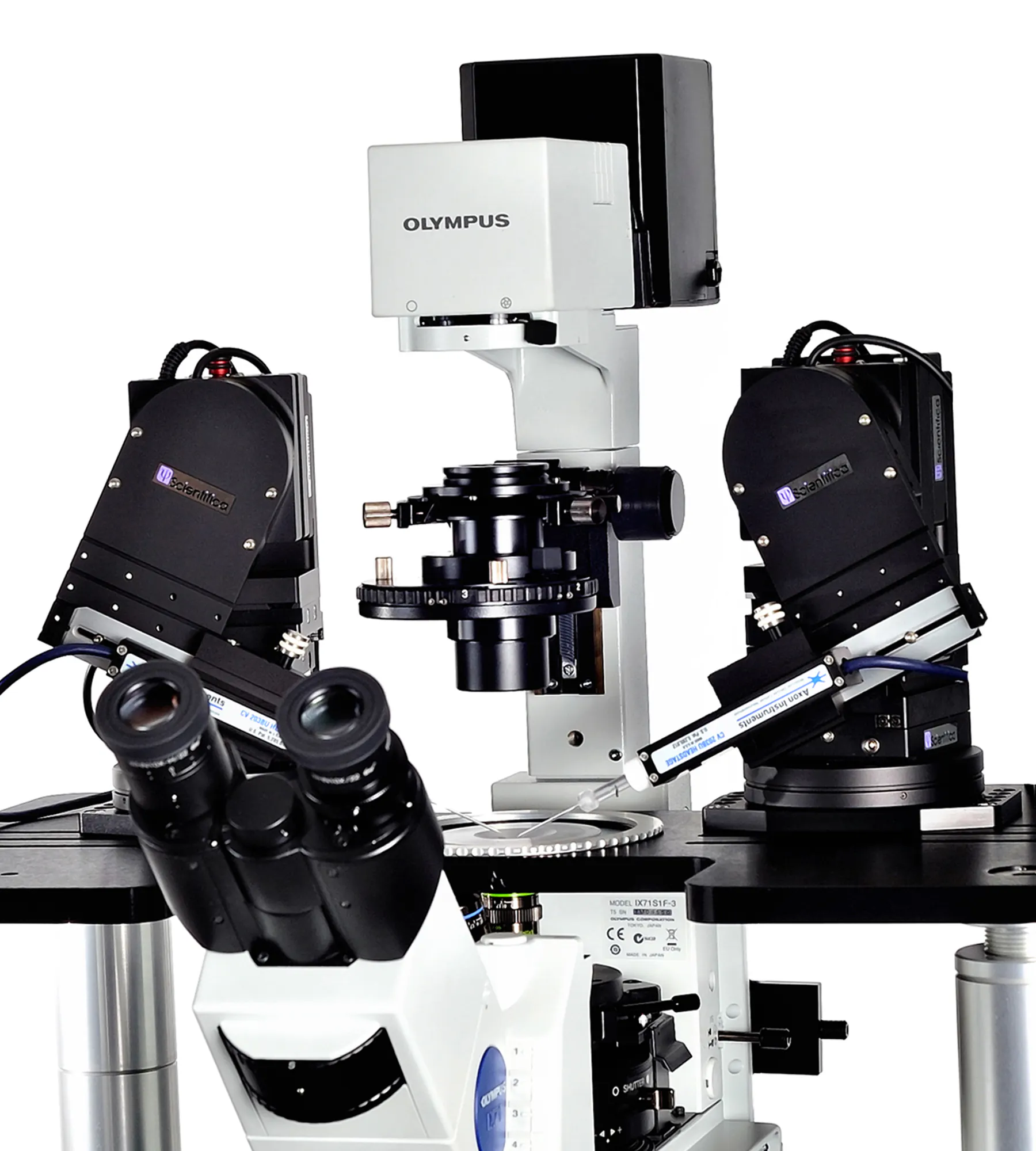

Scientifica Patch Pro 5000

Combine cell imaging and patch clamp experiments on your inverted system. An electrophysiology system that includes an inverted motorised movable top plate and two PatchStar micromanipulators. Ideal for two-photon and confocal imaging when combined with patch clamping.

Benefits

Super-smooth micromanipulators

The PatchStar or MicroStar manipulators have 20 nm resolution for absolute positioning control and less than 1 µm drift in two hours for long-term experiments.

Designed for advanced imaging

Carry out electrophysiology experiments alongside two-photon and confocal imaging thanks to the fixed position of your inverted microscope.

Large, motorised top plate

25 mm of super-smooth movement in the X and Y axes with plenty of space for additional manipulators or other experimental equipment when using an inverted microscope.

Versatile movement

Easily examine the rest of your sample whilst maintaining patches.

Precise mounting

Place the manipulators and other tools close to your sample thanks to the platforms sliding carriages.

Extended Warranty

For a limited time, the warranty of Patch Pro rigs has been extended to three years.

Control options

Control the inverted motorised movable top plate, micromanipulators and focus (if compatible) from any of our remote control options.

Alternatively use Scientifica’s LinLab software, developed specifically to control all of our motorised components.

Downloads

Download the Patch Pro brochure for more information.

Accessories

PatchPro Pro 1000 - in vivo Applications

If you are interested in the PatchPro 1000 for in vivo applications, you can upgrade or order this with an in vivo plate in place of the sample plate holder. The in vivo plate has threaded holes spaced across the surface of the plate, which will enable the user to attach various tools, such as ear bars or head restraints. This allows for further options when using the PatchPro rig, if you are interested please contact us or look at the Post and Platform Sample Plate Holders page.
