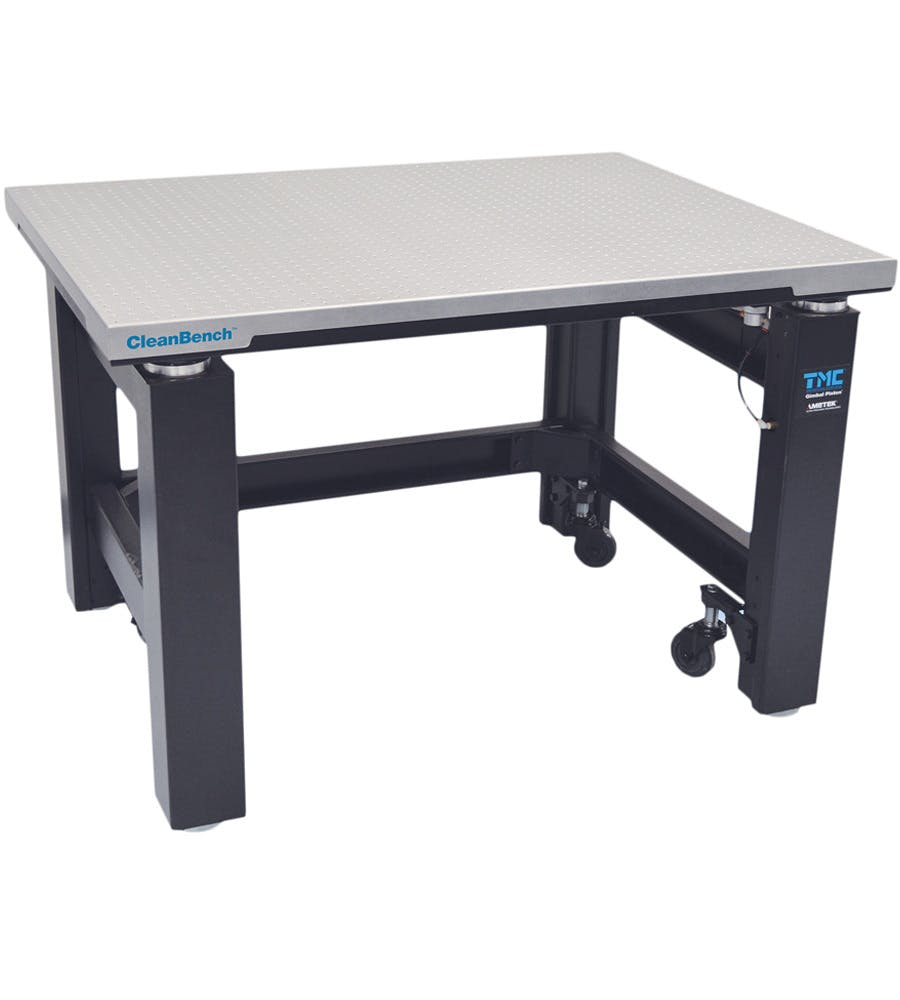

TMC CleanBench with Gimbal Piston Vibration Isolation

The next generation of high-performance vibration and motion cancellation laboratory tables from TMC.

The low-profile, high-density CleanBench offers superior damping, stiffness, and flatness in an easy-to-clean stainless steel shell and is available with or without tapped holes.

TMC CleanBench with Gimbal Piston Vibration Isolation

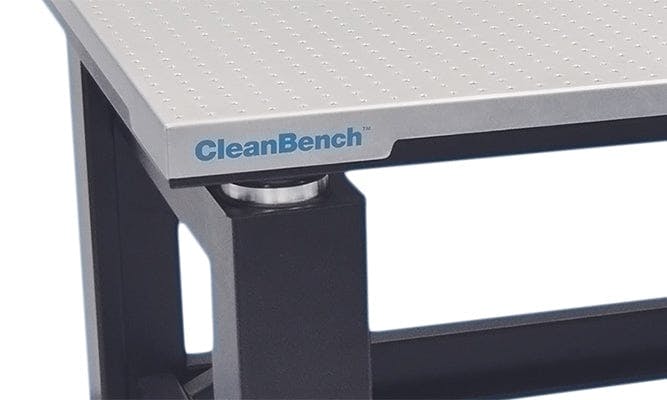

Unique new table top design

Combines the best features of TMC's CleanTop steel honeycomb table-tops with ultra-stiff, damped, layered platform design.

Greater stability

The low profile, high-density tops lower the overall floating centre-of-mass ensuring inherent stability, even for relatively top-heavy payloads.

Guided thread lead-ins

The "bevel" shaped lead-ins help align the screw and eases the engagement of the first thread.

Ergonomically optimised

Minimising the thickness of the top makes these tables ideal for the seated user. Other designs either offer 4" (100 mm) thick tops which awkwardly separate knees and elbows or sacrifice essential mass by offering a 2" (50 mm) thick top (without adequate mass for effective vibration isolation).

The new table top design (patent pending) provides more stability and better ergonomics in a compact form factor.

Accessories

  • Adjustable Steel Front Support Bar
  • Adjustable Steel Rear Support Bar
  • Retractable Casters
  • Adjustable Armrest Pads
  • White Laminate Sliding Shelves
  • Sub-shelf
  • Fixed Full-Perimeter Enclosure
  • TMC's Precision Height Control Valves
  • Type II Faraday Cage

Isolator natural frequency
Isolator natural frequency
High Input: Vertical = 1.2 Hz, Horizontal = 1.0 Hz.
Low Input: Vertical = 1.5 - 2.0 , Horizontal = 1.2 - 1.7 Hz
Isolation efficiency @ 5 Hz
Isolation efficiency @ 5 Hz
Vertical = 70 - 85%, Horizontal = 75 - 90%
Isolation efficiency @ 10 Hz
Isolation efficiency @ 10 Hz
Vertical = 90 - 97%, Horizontal = 90 - 97%
Recommended load capacity
Recommended load capacity
350 lb (160 kg)
Finish
Finish
Medium texture black powder coat frame, stainless steel top
Facilities required
Facilities required
80 psi (5.4 bar) nitrogen or air
Shipping weight
Shipping weight
Approximately 600 lb (272 kg)
Height control valves
Height control valves
Repeatability standard valve: +/- 0.050 in. (1.3 mm)
Precision valve: +/- 0.005 in. (.13mm)
