Scientifica IVM Triple Motorised Micromanipulator
Scientifica IVM Triple
Overview Technical Data

Scientifica IVM Triple

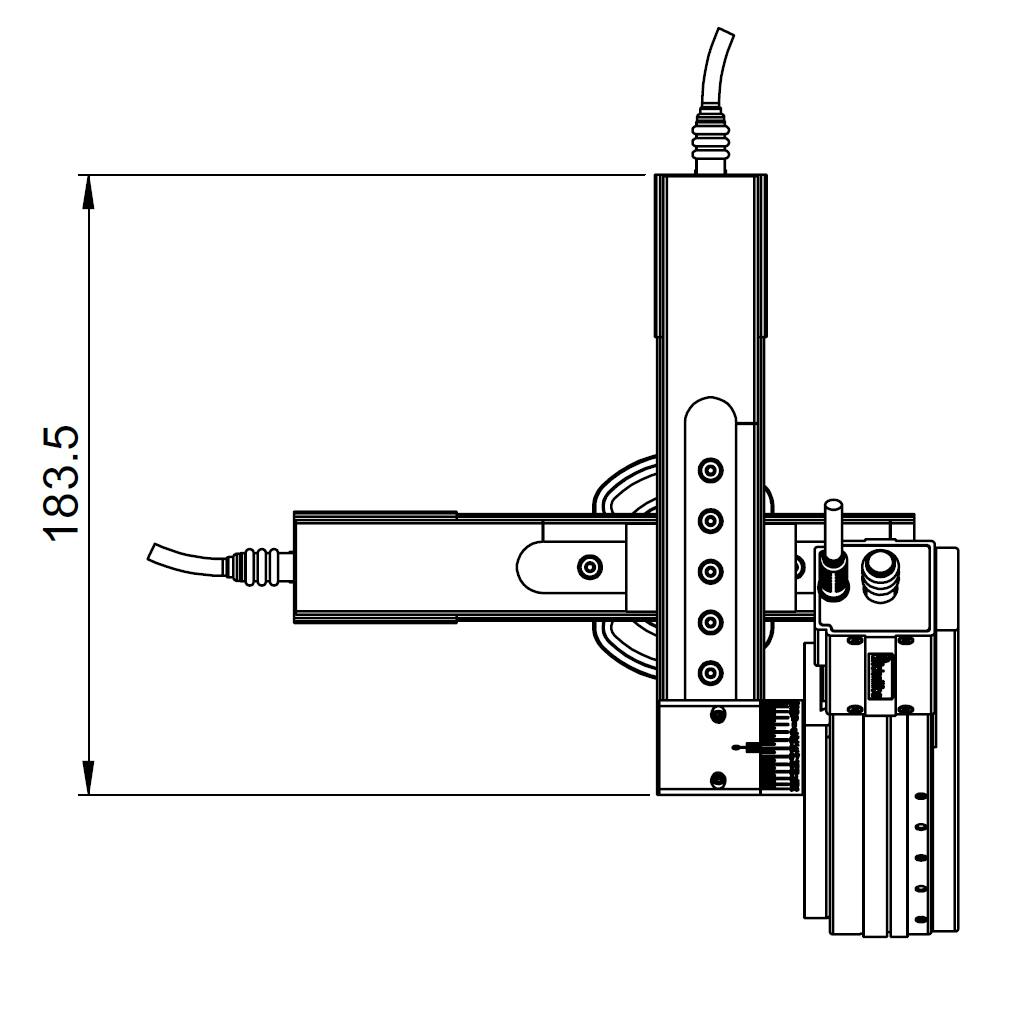

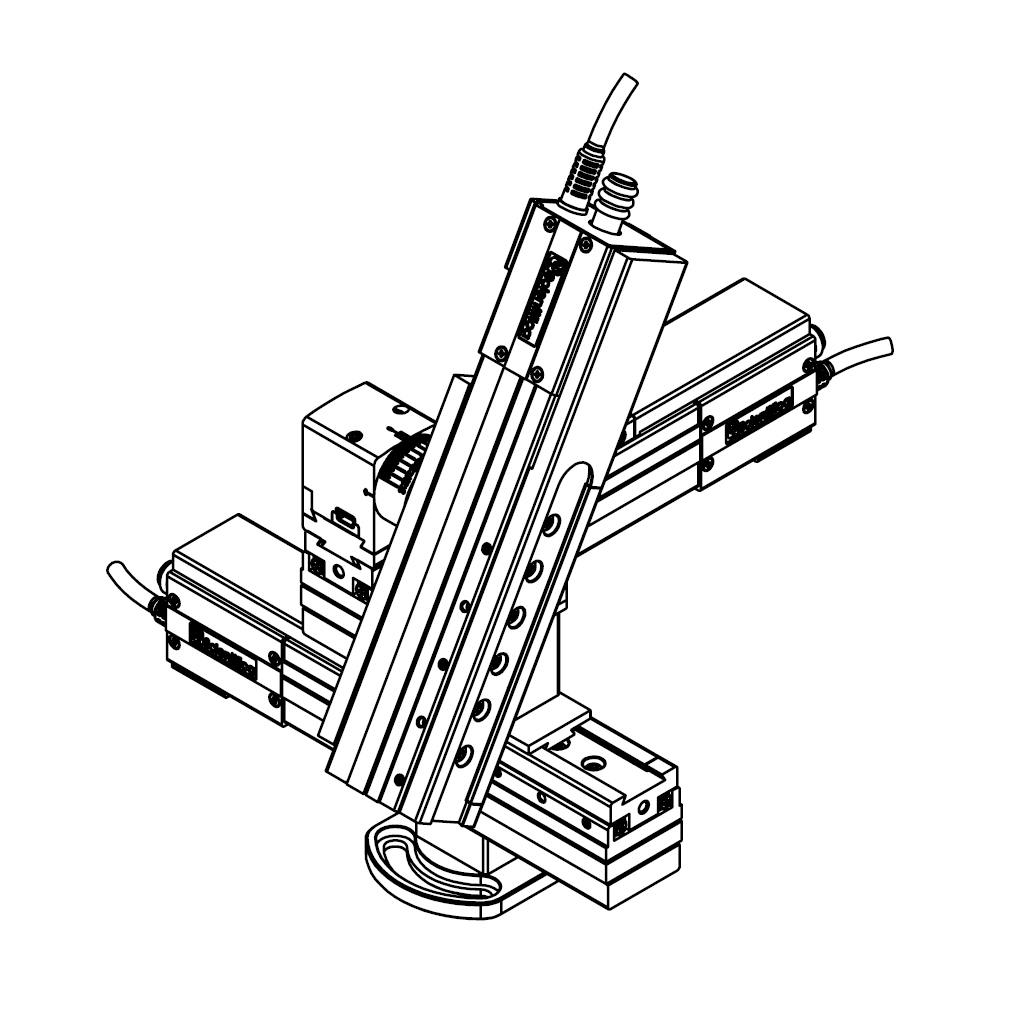

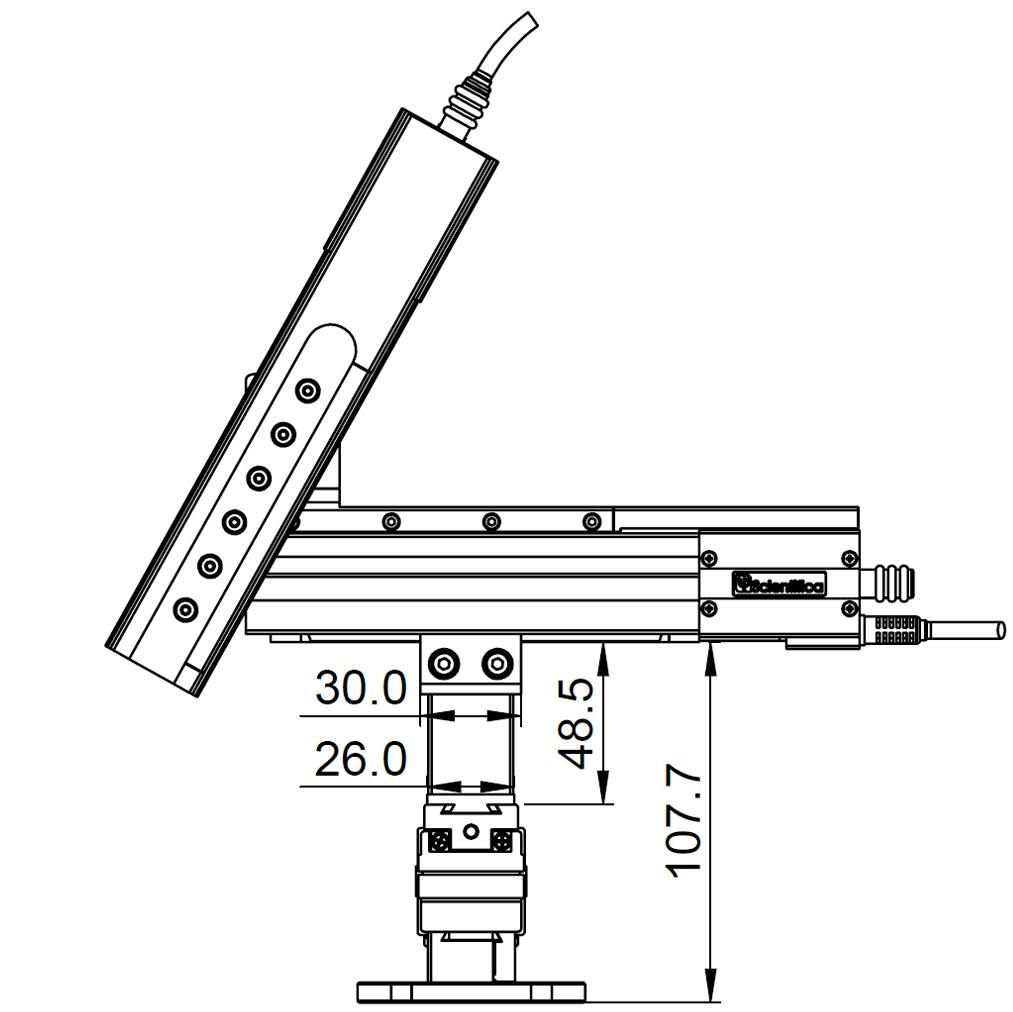

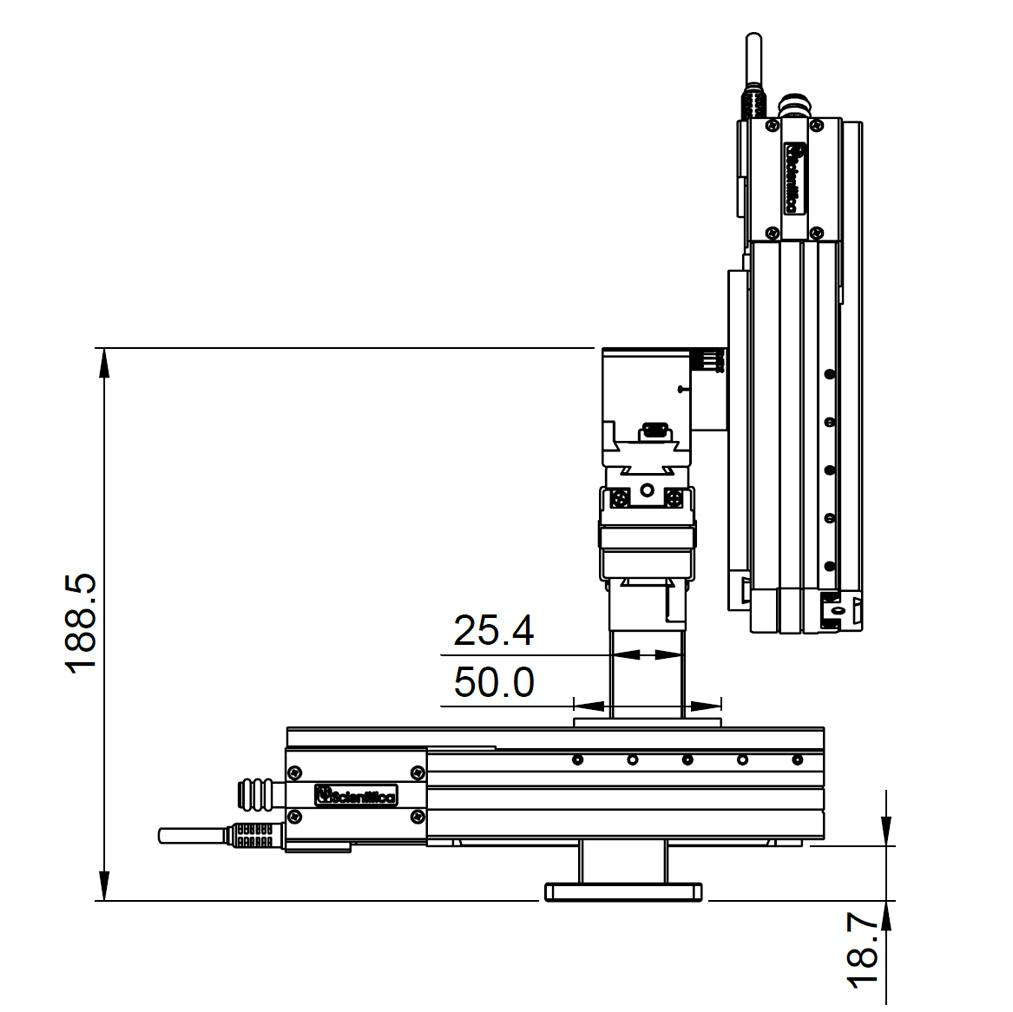

Design & Specifications

  • Number of axes: 3 orthogonal. Optional virtual 4th axis with Rotation Kit
  • Travel distance: 70 mm (in X, Y and Z axes)
  • Electronic resolution: 20 nm
  • Minimum step size: 0.1 µm
  • Minimum speed: 0.01 µm per second
  • Maximum speed: 4 mm per second
  • Memory positions: 50 on control device (unlimited via LinLab)
  • Software: LinLab for Windows
  • Angular accuracy: +/- 1° (when using the IVM Rotation Kit)

Research Papers

  • Ultrahigh-Density 256-Channel Neural Sensing Microsystem Using TSV-Embedded Neural Probes

    Huang, Y., Huang, P., Wu, S., Hu, Y., You, Y., & Chen, J. et al. (2017). Ultrahigh-Density 256-Channel Neural Sensing Microsystem Using TSV-Embedded Neural Probes. IEEE Transactions On Biomedical Circuits And Systems, 1-13. http://dx.doi.org/10.1109/tbca...

  • Weak signal amplification and detection by higher-order sensory neurons

    Jung, S., Longtin, A., & Maler, L. (2016). Weak signal amplification and detection by higher-order sensory neurons. Journal Of Neurophysiology, 115(4), 2158-2175. http://dx.doi.org/10.1152/jn.0...

  • A refined model of water and CO2 membrane diffusion: Effects and contribution of sterols and proteins

    Kai, L., & Kaldenhoff, R. (2014). A refined model of water and CO2 membrane diffusion: Effects and contribution of sterols and proteins. Scientific Reports, 4(1). http://dx.doi.org/10.1038/srep...

  • Combining pharmacology and whole-cell patch recording from CNS neurons, in vivo

    Rose, G., Alluri, R., Vasquez-Opazo, G., Odom, S., Graham, J., & Leary, C. (2013). Combining pharmacology and whole-cell patch recording from CNS neurons, in vivo. Journal Of Neuroscience Methods, 213(1), 99-104. http://dx.doi.org/10.1016/j.jn...

  • Species-specificity of temporal processing in the auditory midbrain of gray treefrogs: interval-counting neurons

    Rose, G., Hanson, J., Leary, C., Graham, J., Alluri, R., & Vasquez-Opazo, G. (2015). Species-specificity of temporal processing in the auditory midbrain of gray treefrogs: interval-counting neurons. Journal Of Comparative Physiology A, 201(5), 485-503. http://dx.doi.org/10.1007/s003...

  • Visual System Impairment in a Mouse Model of Krabbe Disease: The Twitcher Mouse

    Tonazzini, I., Cerri, C., Del Grosso, A., Antonini, S., Allegra, M., Manuela Allegra., Caleo, M., & Cecchini, M. (2020). Visual System Impairment in a Mouse Model of Krabbe Disease: The Twitcher Mouse. Biomolecules 2021, 11(1), 7. https://doi.org/10.3390/biom11...
