Hamamatsu Orca-Fusion CMOS Camera

Hamamatsu Orca-Fusion CMOS Camera

Design and specification

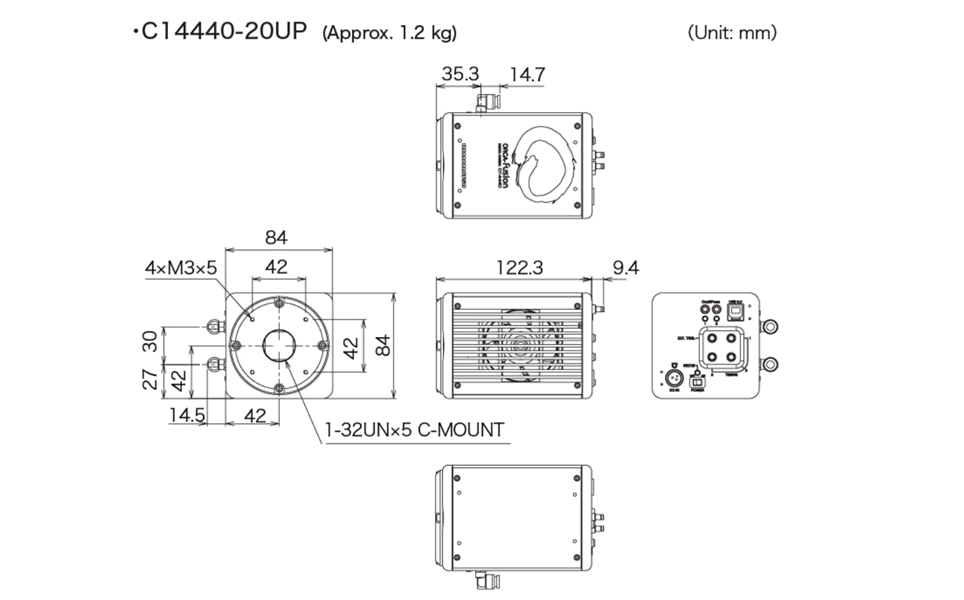

Hamamatsu Orca-Fusion sCMOS Camera schematics

Hamamatsu Orca-Fusion sCMOS Camera spectral response

Orca-Fusion Camera data images

Specifications

  • Imaging device: sCMOS
  • Effective no. of pixels: 2304(H)×2304(V)
  • Cell size: 6.5 μm×6.5 μm
  • Effective area: 14.976 mm (H)×14.976 mm (V)
  • Full well capacity: 14.976 mm (H)×14.976 mm (V)
  • Readout speed: Fast scan: 89 frames/s with CoaXPress or 31.6 fps with USB3.0 (2304 x 2304)
  • : Fast scan: 100 frames/s with CoaXPress (2304 x 2048)
  • : Standard scan: 23.2 frames/s with CoaXPress or USB3.0 (2304 x 2304)
  • : Ultra quiet scan: 5.4 frames/s with CoaXPress or USB3.0 (2304 x 2304)
  • Readout noise: Fast scan: 1.4 electrons rms
  • : Standard scan: 1.0 electrons rms
  • : Ultra quiet scan: 0.7 electrons rms
  • Cooling method: Peltier cooling
  • Cooling temperature: Forced air (Ambient at +25 ℃): -5 ℃
  • : Water (+25 ℃): -5 ℃
  • : Water (+15 ℃): -15 ℃
  • Dark current: 0.5 electrons/pixel/s(-5 ℃)(typ.)
  • : 0.5 electrons/pixel/s(-5 ℃)(typ.)
  • : 0.5 electrons/pixel/s(-5 ℃)(typ.)
  • Dynamic range: 21 400 : 1(typ.)
  • External trigger mode: Edge, Level, Sync readout, Start, Global reset edge, Global reset level, programmable
  • External trigger signal routing: SMA x1
  • Trigger delay function: Yes
  • Trigger output: Global exposure timing, trigger ready, low, high
  • External signal output routing: SMA x 3
  • Interface: CoaXPress (6.25Gbpsx2 lane) and USB3.0 Super Speed
  • A/D converter: 16 bit / 12 bit / 8 bit
  • Lens mount: C-mount
