Scientifica SciCam+ Camera

Scientifica SciCam+ Camera

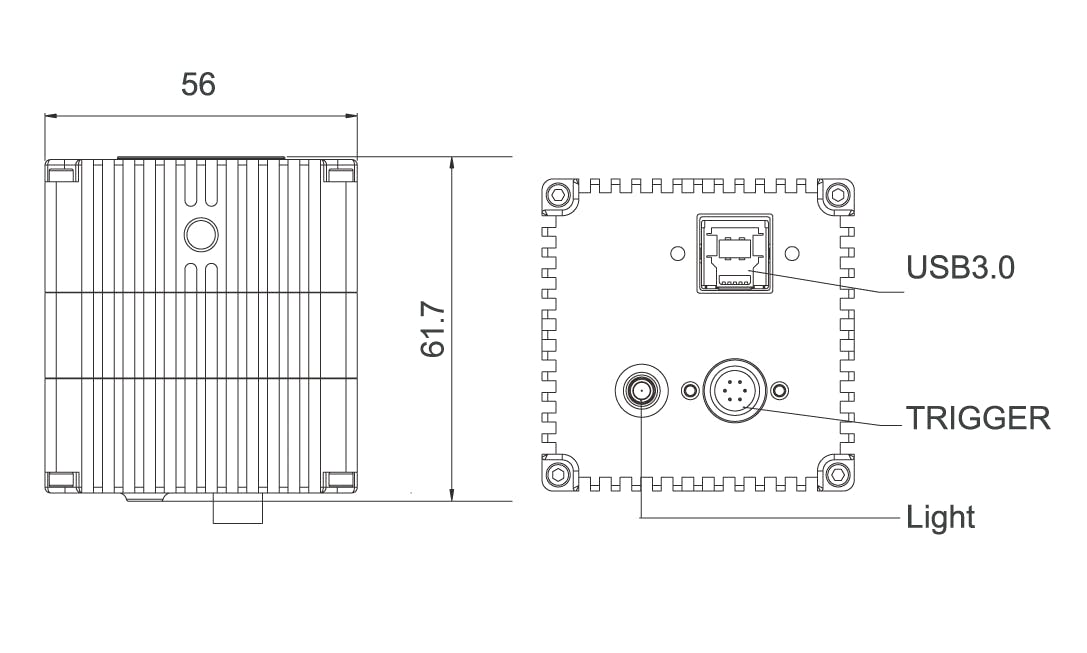

Schematics

SciCam+ Camera Schematics

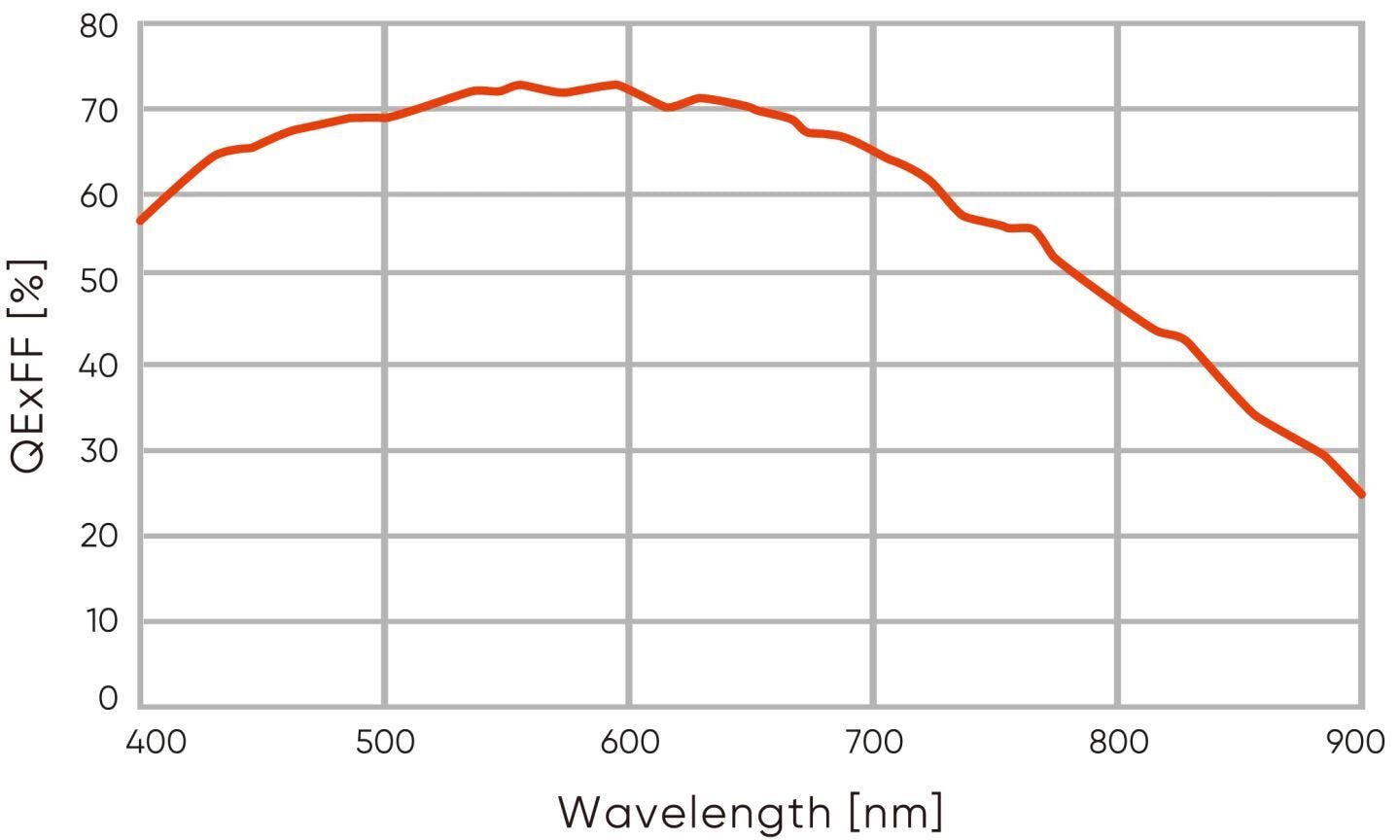

Quantum efficiency across spectrum - SciCam+ Camera

The 72% peak quantum efficiency of the Scientifica SciCam+ provides high sensitivity to light, allowing you to capture clearer, higher-quality images of cells in low-light conditions. This enhances the precision and reliability of their experiments, improves the visualisation of fluorescent signals, and reduces the risk of damaging sensitive cells during imaging.

Design and Specifications

  • Sensor type: FSI (front illuminated) sCMOS
  • Peak QE: 72%
  • Chip diagonal: 18.8mm
  • Number of pixels: 2048 x 2048
  • Pixel size: 6.5 micron
  • Full well capacity: 43k electrons
  • Frame rate: 40fps at 16 bit, 45fps at 8 bit
  • Shutter type: Rolling
  • Read noise: 2.1 electrons
  • Binning: 1x1, 2x2, 4x4
  • Trigger output options: Exposure Start, Readout End, Trigger Ready
  • Dimensions: 56 mm x 56 mm x 61.7 mm
  • Weight: 305 grams
  • Power consumption: <4W

Recommended computer system configuration

  • CPU: i5 and above, main frequency 2.6GHz or above
  • Operating system: Windows 10/11 64-bit PC
  • Memory: 8GB and above
  • Data interface specifications: USB3.0 | PCIe3.0*16
