Scientifica IVM Mini Triple
Schematics

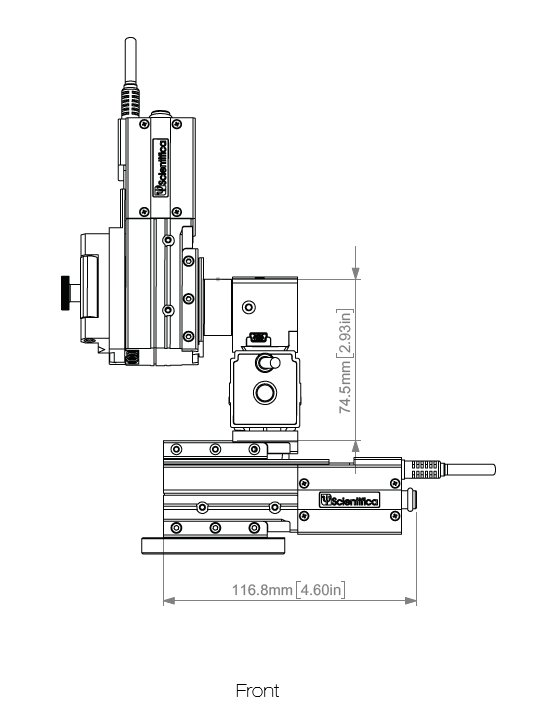

Front view

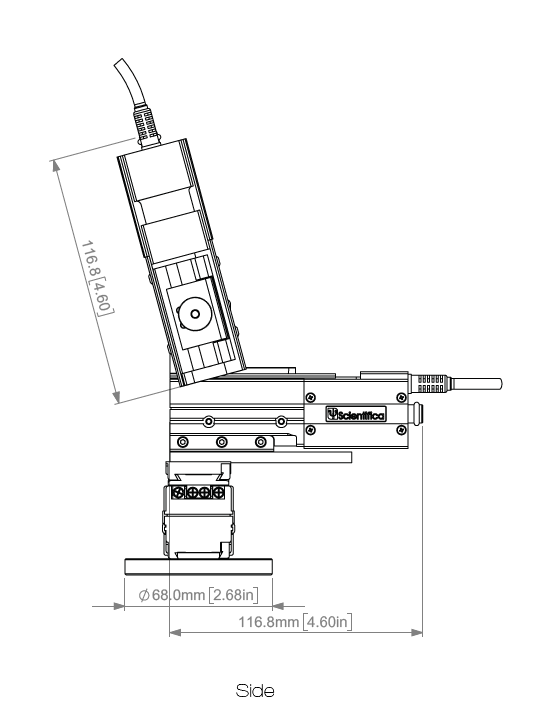

Side view
Accessories
Dovetail probe holder to fit bars/probes
Electrode/probe holding bar with v groove, which also attaches to the LBM-7 manipulator, PatchStar, MicroStar and IVM.
Design and Specifications
- Number of Axes: 3
- Travel Distance: 20 mm (in X, Y and Z axes)
- Electronic resolution: 20 nm
- Minimum step size: 0.1 µm
- Minimum speed: 1 µm per second
- Maximum speed: 4 mm per second
- Memory positions: 50 on control device (unlimited via LinLab)
- Software: LinLab for Windows
Research Papers
-
Central osmolality sensing for arginine vasopressin release is mediated by WNK1‐OSR1/SPAK‐KV3.1 cascade.
Jin, X., Xie, J., Yeh, C., Li, Y., Lien, C., & Huang, C. (2025b). Central osmolality sensing for arginine vasopressin release is mediated by WNK1‐OSR1/SPAK‐KV3.1 cascade. The FASEB Journal, 39(22), e71213. https://doi.org/10.1096/fj.202...
-
Prefrontal cortex neurons encode ambient light intensity differentially across regions and layers
Zangen, E., Hadar, S., Lawrence, C., Obeid, M., Rasras, H., Hanzin, E., Aslan, O., Zur, E., Schulcz, N., Cohen-Hatab, D., Samama, Y., Nir, S., Li, Y., Dobrotvorskia, I., & Sabbah, S. (2024). Prefrontal cortex neurons encode ambient light intensity differentially across regions and layers. Nature Communications, 15(1). https://doi.org/10.1038/s41467...
-
Distinct forms of synaptic plasticity during ascending vs descending control of medial olivocochlear efferent neurons
Romero, G. E., & Trussell, L. O. (2021). Distinct forms of synaptic plasticity during ascending vs descending control of medial olivocochlear efferent neurons. eLife, 10. https://doi.org/10.7554/elife....
