    Photometrics Kinetix22
    Overview Technical Data

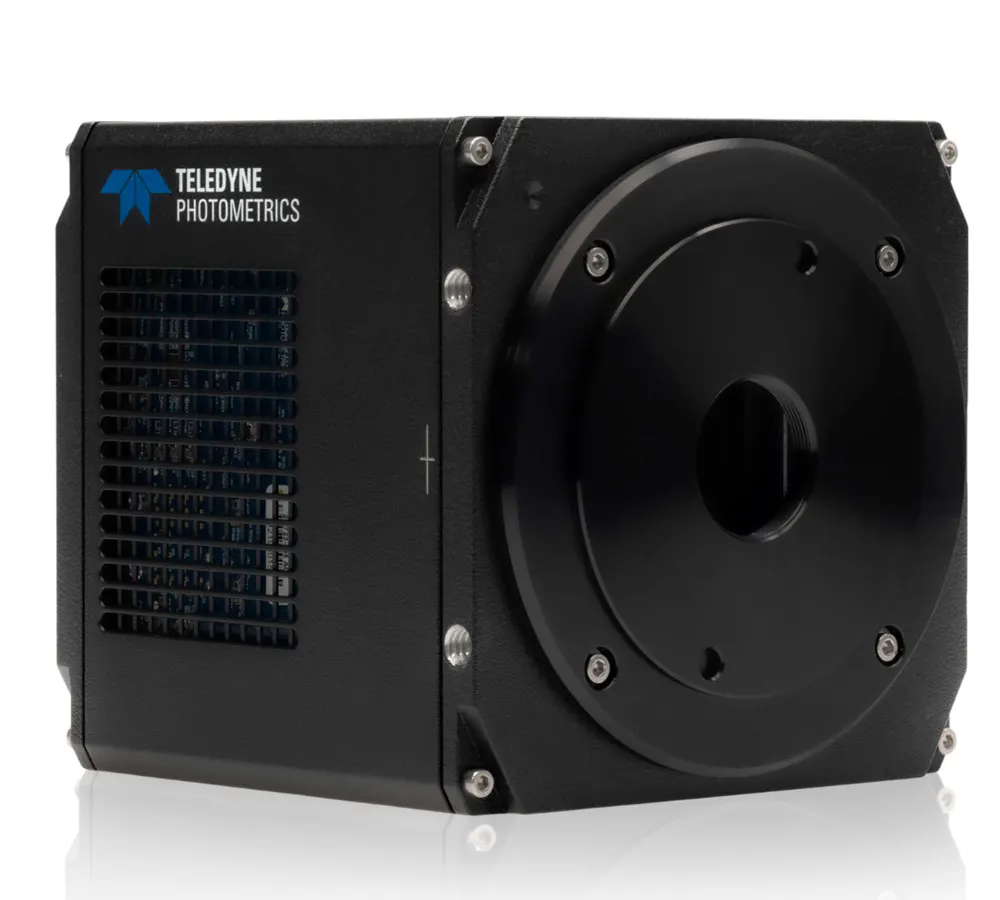

    Teledyne Photometric Kinetix22 sCMOS camera

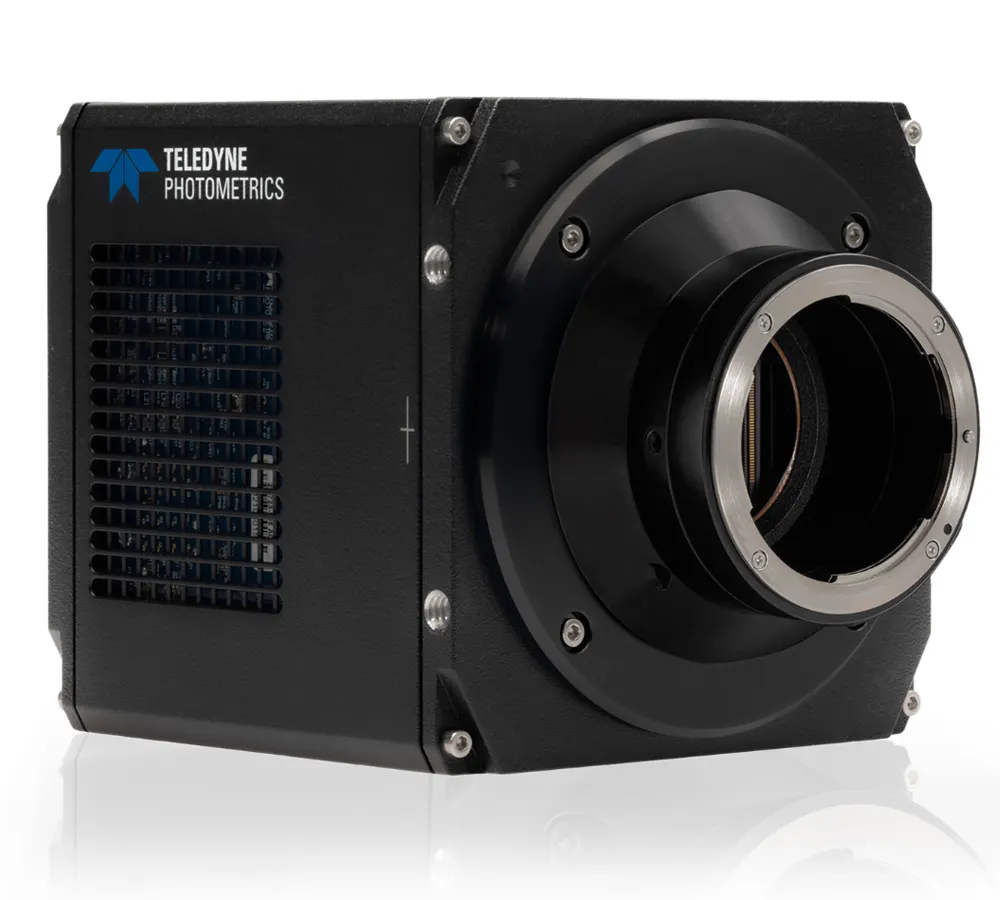

    Teledyne Photometric Kinetix22 sCMOS camera

    Photometrics Kinetix22

    High speed, large sensor sCMOS solution for scientific imaging

    The Kinetix22 sCMOS delivers high speed imaging with an optimized field of view, featuring a 22 mm sensor designed for modern C-mount microscopes. The optimised line time of the Kinetix22 results in 7x greater datarate than typical sCMOS devices.

    Scroll to see more

    Product benefits

    Ultimate flexibility

    Kinetix Family cameras feature four imaging modes, allowing users to modify different camera specifications, optimize imaging, and avoid compromise. The 8-bit Speed mode offers 500 fps across the full frame, 12-bit Sensitivity mode offers low 1.2 e- read noise while operating at ~90 fps, 16-bit Dynamic range has large full well capacity for varied signal levels in the sample, and 16-bit Sub-Electron mode offers EMCCD-like sensitivity with 0.7 e- read noise.

    Extreme speed

    Taking advantage of an 8-bit readout mode, the Kinetix Family deliver a tremendous 498 fps from across the full 29.4 mm diagonal field of view. The optimized line time allows the speed to significantly outperform typical sCMOS devices, with the Kinetix delivering >5000 megapixels/second – over a 10-fold improvement.

    High sensitivity

    The Kinetix Family are back-illuminated sCMOS cameras, achieving near-perfect 95% QE at peak. By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability. By combining near-perfect QE with sub-electron read noise (0.7 e-), Kinetix cameras deliver high-contrast images even at the lowest signal levels.

    High resolution

    The Kinetix Family features 6.5 µm x 6.5 µm pixels, the accepted standard for most live cell applications using 40x and 60x magnification. This pixel size provides highly detailed images across the imaging plane and is most suitable for the broadest range of microscope objectives.

    Superior background quality

    Thanks to Pattern Noise Reduction Technology and Correlated Noise Reduction Technology, Kinetix cameras deliver clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

    Speak to one of our experts for details on pricing, features, installation and support.
