Hamamatsu Orca Flash 4.0 LT3

Hamamatsu Orca Flash 4.0 LT3

Specification

Hamamatsu OrcaFlash LT3

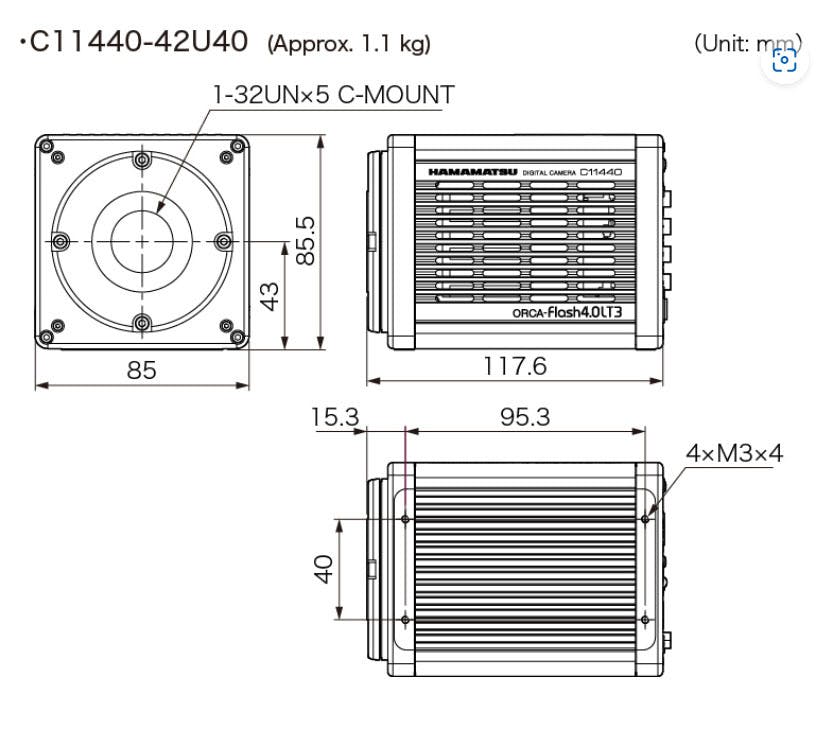

Hamamatsu Orca-Flash 4.0 LT3 specifications

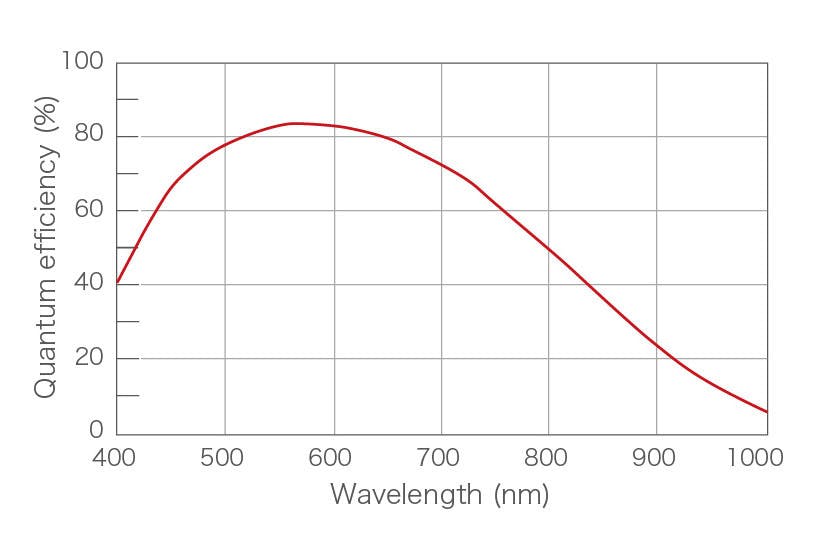

Hamamatsu Orca-Flash 4.0 LT3 spectral response

Specifications

  • Product number: C11440-42U40
  • Imaging device: Scientific CMOS image sensor
  • Effective no. of pixels: 2048 (H)×2048 (V)
  • Pixel size: 6.5 μm (H) ×6.5 μm (V)
  • Effective area: 13.312 mm (H) × 13.312 mm (V)
  • Full well capacity: 30,000 electrons
  • Dynamic range: 33 000: 1 *1 20 000: 1 *2
  • Cooling method: Standard scan : 1.5 electrons rms / 0.9 electrons median
  • Cooling temperature: +10 ℃ (Forced-air cooled, FAN speed: Fast ambient temperature: +10 °C to +30 °C)
  • Frame rate at full resolution: Rapid rolling : 40 frames/s, Standard scan : 30 frames/s
  • Readout noise: Rapid rolling : 1.9 electrons (rms) , 1.3 electrons (median), Standard scan : 1.5 electrons rms / 0.9 electrons median
  • Dark current: 0.6 electrons/pixel/s (typ.) (Cooling temperature: +10 °C)
  • Digital output: 16 bit
  • Exposure time: Internal trigger mode *3 (Rapid rolling) : 1 ms to 10 s
  • : Internal trigger mode *3 (Standard scan) : 3 ms to 10 s
  • : Internal trigger mode with sub-array readout (Rapid rolling) : 40 μs to 10 s
  • : Internal trigger mode with sub-array readout (Standard scan) : 129.99 μs to 10 s
  • External trigger input: Edge trigger, Global reset edge trigger, Level trigger, Global reset level trigger, Synchronous readout trigger, Start trigger
  • Trigger delay function: 0 s to 10 s in 1 μs steps
  • Trigger input connector: SMA
  • Trigger output: 3 programmable timing outputs, Trigger ready output, Global exposure timing output, Low output, High output
  • Trigger output connector: SMA
  • Binning: 2×2, 4×4
  • Sub-array: Yes
  • Readout speed: 30 frames/s
  • Interface: USB 3.1 Gen 1
  • Lens mount: C-mount
  • Power supply: AC 100 V to AC 240 V, 50 Hz / 60 Hz
  • Power consumption: Approx. 75 VA
  • Ambient operating temperature: 0 °C to +40 °C (FAN speed: Fast)
  • Ambient storage temperature: −10 °C to +50 °C
  • *1 Calculated from the ratio of the full well capacity and the readout noise (median) in standard scan *2 Calculated from the ratio of the full well capacity and the readout noise (rms) in standard scan *3 Minimum exposure time in internal trigger mode varies depending on sub-array size and position.:
