Scientifica SciLumi - White NIR

Example Data

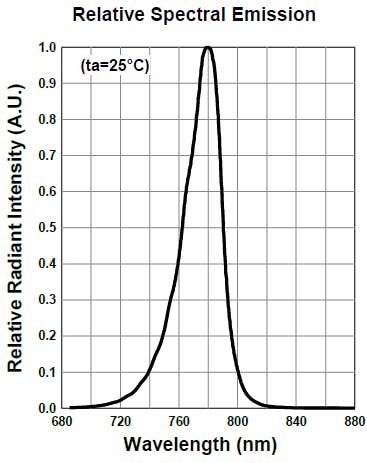

Relative Spectral Emission for the infrared LED

Specifications

• Power requirements: Input : 90 – 240 V AC, 50/60 Hz
• Power consumption: < 1 W standby (controller idle) / ≤ 10 W at full irradiance (lamp + control)
• Dimensions & mass: • Light Source: Ø 96 mm × L 140 mm; Weight 0.95 kg• Controller : W 70 mm × D 80 mm × H 41 mm; Weight 0.2 kg• Power Supply: W 52.5 mm × D 82 mm × H 35 mm; Weight 0.2 kg
• Spectral characteristics: Broadband white LED (≈ 430 – 700 nm, PT-100 module); NIR LED peak 790 nm (±10 nm)
• Irradiance range & resolution: 0 – 100 % continuously variable via multi-turn potentiometer (three full turns ≈ ≈1 % effective steps)
• Safety & environmental: • Class I LED product under IEC 60825-1 (eye-safe when used as directed) • Extra-Low-Voltage (30 V DC) design; ELV classified • Mercury-free, laser-free solid-state source; no bulb disposal. • RoHS/WEEE compliant; low noise; passive cooling (quiet). • Rated operating environment 15 – 40 °C, ≤ 60 % RH; IP 11 ingress rating
• Control features: Handheld controller with three-turn intensity dial per channel and 3-position rocker/paddle for White / OFF / NIR selection; colour-coded status LED. Independent 0-100 % control for each source
• Microscope compatibility: Direct-fit to the transmitted-light port of Scientifica SliceScope & VivoScope frames; maintains Köhler alignment for DIC & IR-DIC
• Warranty: 24-month Scientifica standard warranty on manufactured goods
• Additional notes / disclaimers: • No user-serviceable parts; use indoors only. • Recommended duty cycle: ≤ 12 h continuous use in any 24 h period. • Ground the lamp to the optical table before operation. • Follow local laser/LED eye-safety practice – avoid direct viewing of the emitting aperture
