CoolLED pE-300 white LED illumination
CoolLED pE-300 White
Overview Technical Data

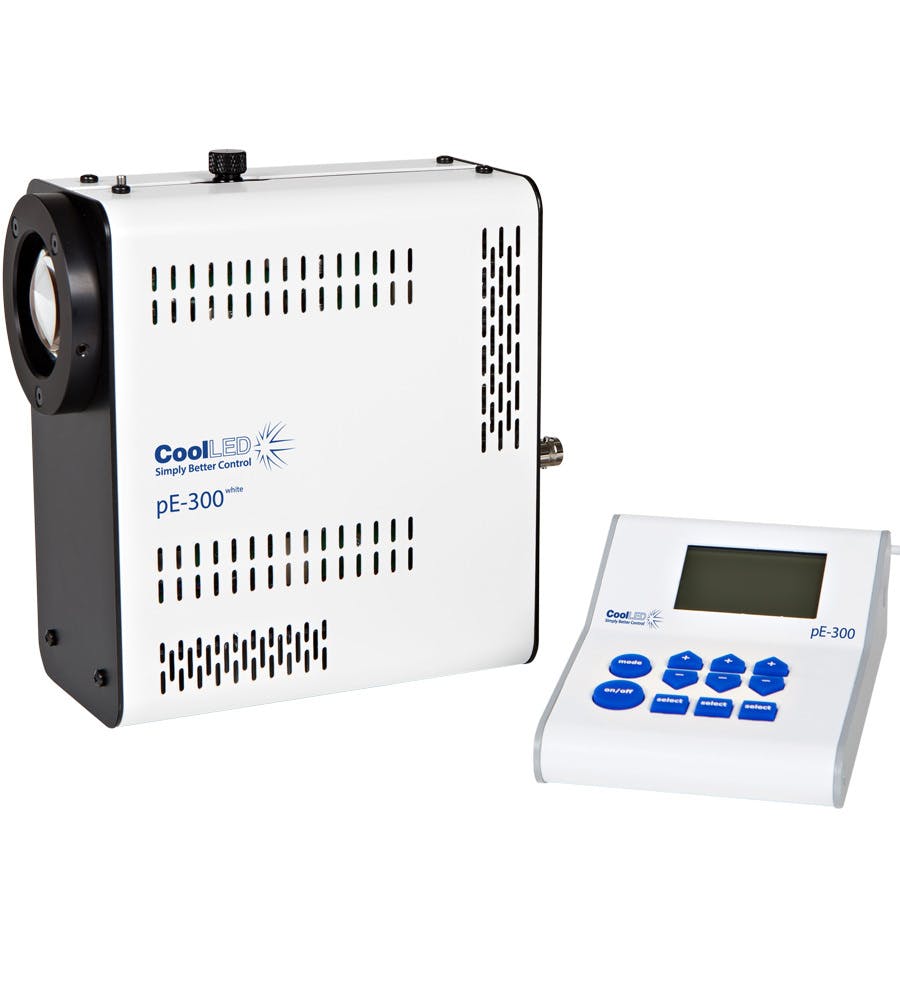

CoolLED pE-300 white
CoolLED pE-300 designed to offer broad-spectrum LED illumination for general use in fluorescence applications

CoolLED pE-300 White

Designed to offer broad-spectrum LED illumination for general use in fluorescence applications

A compact and simple to use LED illumination unit, roviding a broad spectrum of illumination, covering the excitation bands of common fluorescent stains. Operation is by a remote manual control pod with instant on/off and intensity control from 0-100%. Remote control is available via USB or TTL trigger.

Scroll to see more

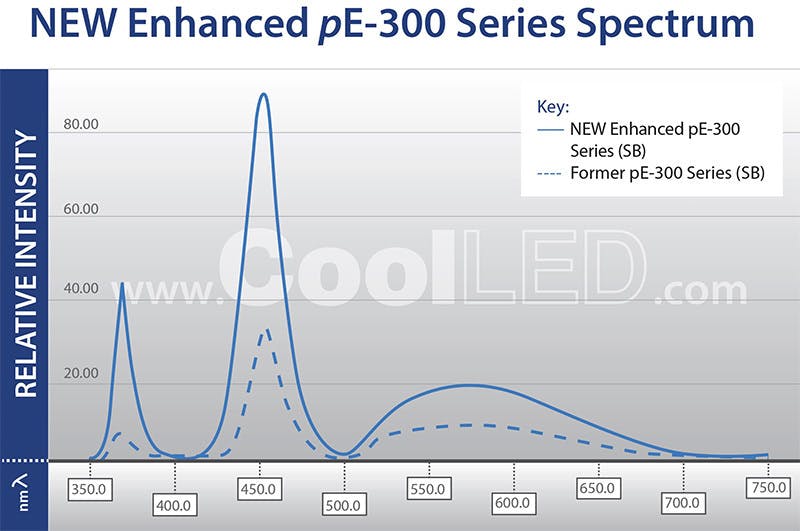

CoolLED pE-300 series spectrum graph

Enhanced spectrum

As part of the pE-300 Series, the NEW Enhanced pE-300white now delivers DOUBLE the intensity at the microscope sample plane. It allows adjustment of output in 1% steps, giving precise control. The broad spectrum covers everyday fluorophores: DAPI, CFP, Aqua, FITC, TRITC, TxRed, Cy5 and many more.

As a replacement to a metal halide source on a confocal microscope, the liquid light guide configuration is particularly suitable for pre-aligning samples before scanning commences. In this way, photo bleaching of the sample can be minimised when LED illumination is used.

Control pod for operation and access to settings and usage history


Manual control for instant on/off and intensity control in 1% steps from 0 – 100%

Individual bands can be selected/deselected and controlled independently as desired


Via single TTL for on/off control of selected channels using a BNC connection on the light source.

Triggering speed <20us

USB control

Environment & safety

LED products are more sustainable and energy efficient than conventional illuminators. CoolLED's products have the following benefits:

  • Mercury-free
  • Energy Efficient: 80% less power
  • Long lifetime (25,000 operating hours)
  • No bulb replacements
  • Reduced risk of eye damage
  • Quiet operation
  • No special disposal regulations or issues

Light delivery

Direct-fit to a microscope

Specify from CoolLED’s range of epi-fluorescent or transmitted port microscope adaptors

Liquid Light-Guide

1.5m long, 3mm diameter light-guide.


System = 36 months, LEDs = 36 months


Download the CoolLed pE-300white brochure.
